Types of Wire & Cable Products

Types of Zetastone Cables

By Standard

By Type

Bare Conductor

AAAC
All Aluminum Alloy Conductor

Conductor construction：concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core.
Conductor applications：ACSR Conductor are used for river crossings, overhead ground wires, installations involving extra long spans etc.
ACSR
Aluminum Conductor Steel Reinforced

Conductor construction：concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core.Conductor applications：ACSR Conductor are used for river cr...
ACAR
Aluminum Conductor Alloy Reinforced

Conductor construction：ACAR concentric-lay-stranded conductors in single and multi-layer conductor,made from round aluminum1350-H19 (extra hard) wires and round aluminum 6201-T81 wires.Conductor applicati...

CSA Cable

ACWU90
Aluminum Metal Clad Armored Cable

Rated Voltage：600V/1000V2000V
Conductor：Aluminum alloy/copper
Insulation：XLPE
Armour：Aluminum alloy interlock armour
Sheath：PVC
RW90
Copper Conductor

Rated Volatge：600V
Conductor：Copper/Aluminum
Insulation：XLPE
Teck90 600/1000V
Copper Conductor

Rated Voltage：600V/1000V/2000V/5000V
Conductor：Stranded copper
Insulation：XLPE
Inner Jacket：PVC
Armour：Aluminum alloy interlock armour
Overall Jacket：Black PVC
RC RA
Copper 2-Hour Fire Resistive Cables

Voltage Level：600V
Conductor：copper
Insulation：Ceramifiable/XLPE
NMWU
Copper Conductor

Number of cores：dual cores and three cores
Rated Voltage：300V
Conductor Material: Copper
T90 THHN THHN-2 TWN75 THW
Copper Conductor

Rated Voltage：600V
Conductor：Copper
Insulation：PVC
Sheath：Nylon
AC90
Metal Clad Armored Cable

Rated Voltage：600V
Conductor：copper/aluminum
Insulation：XLPE
Armour：Aluminum alloy interlock armour
NMD90 Aluminum
Non-Metallic Sheathed Cable

Number of cores：dual cores and three cores
rated voltage：Aluminum
Working temperature：Minimum temperature is -25℃,Maximum temperature is 90℃
Insulation：Cross-linked polyethlene(XLPE)
Jacket：PVC
USEB-90 600V
Underground Distribution Cables

Voltage Level：600V
Conductor：multiple

UL Cable

DLO
2kV Heavy Duty Flexible Power Cable

Rated Voltage：2000V
Scope：Drilling rigs;Railroad and transit car wiring,mining and other industrial equipment
Rated Temperature：90℃
SJOOW
300V, 105°C Flexible Copper Cord

Rated Voltage：300V
Insulation：EPDM Rubber
Sheath：Black CPE
SOOW
600 Volt 90°C Flexible Copper Cord

Rated Voltage：600V
Insulation：EPDM Rubber
Sheath：Black CPE
XHHW-2
1000 Volts / 600 Volts Aluminum Alloy Conductor

Voltage Level：1000V/600V
Conductor：Aluminum
Insulation：XLPE
MV90/MV-105
Aluminum & Copper URD Cable

Rated Voltage：5KV 8KV 15KV 25KV 28KV 35KV 46KV
Conductor：Copper,Aluminum,Aluminum Alloy 8000 series
Insulation：EPR(UL)
Screen：Copper Tape Shield
Sheath：XLPE(UL)/PVC

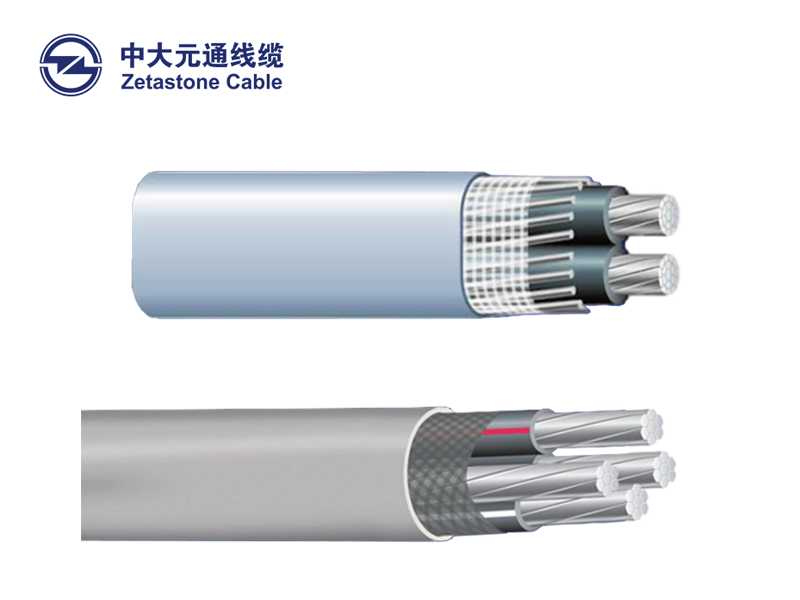

SEU/SER
Aluminum Service Entrance Cable

Voltage：600V
Conductors：Aluminum Alloy(AA8176)
Insulation：XHHW-2orTHHN/THWN-2
Mobile Home Feeder
Aluminum Underground Service Entrance Cable

Voltage：600V
Conductor：Aluminum Alloy(AA-8176)
Insulation：XLPE
RHH RHW USE-2
Aluminum Underground Service Entrance Cable

Voltage：600V
Conductor：Aluminum Alloy
Insulation：XLPE
NM-B
Nonmetallic-Sheathed Cable

Rated Voltage：600V
Conductor：Annealed Copper
Insulation：PVC
Overall Sheath：PVC
UF-B
Underground Feeder and Branch Circuit Cable

Rated Voltage：600V
Insulation：PVC/Nylon
Sheath：PVC

IEC60502 Low Voltage Cable

N2XY
Power and Signal Cable

Nominal Voltage:
0,6/1 kV
Standard:
IEC 60332-1
NYY
Power and Signal Cable

Nominal Voltage:
0,6/1 kV
Standard:
IEC 60332-1
FG7OR
Power And Signal Flexible Cable

Nominal Voltage:
0,6/1 KV
Standard:
IEC 60754-2
NAYY
Power Cable

AluminumInsulation:PVC
Temperature Range:-20-70
Nominal Voltage:0,6/1 KV
Test Voltage:4KV
Standard:IEC 60332-1
NYBY
Power and signal cable

Nominal Voltage:
0,6/1 kV
Standard:
IEC 60332-1

IEC60502 Medium Voltage Cable

3.6/6KV (Um=7.2KV)
Single Core Cables to IEC 60502

Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids.
1.8/3KV
Single Core Cables to IEC 60502

Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids.
6/10KV (Um=12KV)
Single Core Cables to IEC 60502

Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids.
3.8/6.6KV (Um=7.2KV)
Three Core Cables to IEC 60502

Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape.
6/10KV (Um=12KV)
Three Core Cables to IEC 60502

Conductor:Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape.
18/30KV (Um=36KV)
Three Core Cables to IEC 60502

Conductor:Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape.

Armoured Cable

VLV22
PVC insulated LV Armored Power Cable

Conductor: Solid or stranded copper or aluminum
Insulation:PVC
Circuit Identification: The insulation shall be red, black
VV32
PVC Insulated LV Armored Power Cable

conductor:stranded BC copper
Insulation:PVC
Inner sheath:PVC
Armor:aluminium wire
PVC Aroured Cable
PVC Insulated Sheathe Electric Cable

Conductor :flexible stranded copper conductor, Cl.2 as per IEC 60228
Insulation : PVC
Inner covering : PVC
VLV22 LV
PVC Insulated Low Voltage Armored Power Cable

Conductor: stranded aluminum conductor
Insulation : PVC
Inner sheath: PVC
WDZA-YJV23 3C
XLPE Insulated LV Armored Power Cable

Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV92) Max. working temperature: 90 °c
Max. temperature during short circuit (≤5S): 250 °c
Conductor: class 1, 2 copper or aluminum
WDZA-YJV 3core
XLPE Insulated MV Armored Power Cable

Conductor:compact BC conductor
Insulation:XLPE
Screen:copper tape screen
Sheathe:overall LOSH sheathe
WDZAYJV22
XLPE Low Smoke Zero Halogen Power LSOH Power Cable Electric Wire Waterproof Rubber Cable

Conductor: stranded aluminium
Insulation: Cross-linked polyethylene
Filler: Polypropylene filament with lapped binding tape
Inner sheath:LOSH

Control Cable

KYJVRP2-22
Control Cable

conductor:Solid (RE) or stranded (RM) bare copper
Insulation Material:XLPE
Sheath Material:PVC
Material Shape:Round Wire
KVVP2
Control Cable

Conductor:Solid or Stranded or Flexible copper conductor
Insulation:PVC or XLPE or Rubber Insulation
Jacket: PVC Materials
Standard: IEC60502
ZR KVV32
Control Cable

Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C

Earth Wire

6491X / H07V-R / H07V-U EN 50525-2-31
Cable Earth Wire

Voltage Rating: Uo/U450/750V
Temperature Rating:-15°C to +70°C
Minimum Bending Radius:up to 10mm²: 3 x overall diameter 10mm² to 25mm²: 4 x overall diameter;Above 25mm²: 5 x overall diameter
Standards:EN 50525-2-31 :Flame Retardant according to IEC/EN 60332-1-2
PVC
Electric Power Earth Wire Cable

Conductor:solid copper conductor
Insulation:PVC,PE
Standard:IEC 60227, BS 6004
H07V-U
Earth Wire

Voltage Rating Uo/U : 450 / 750 V
Operating temperature : 70°C
short circuit temperature : 160°C
Temperature of use : -15°C +60°C

Fireproof Cable

180K to 1KV Voltage 950 °C
Flexible Fireproof Cables

Conductor: Compact stranded copper conductor, Cl.2 as per lEC60228
insulation: inorganic mineral insulating material
Filler: inorganic fiber filler

Flat Cable

Flat Cable
Multi-core Flat Control Cable and Power Hoist Cable for Crane and Conveyor

Rated Voltage:
300V/500V (0.75mm2 to 1.0mm2)
450V/750V (1.5mm2 to 2.5mm2)
Rated Temperature:-15°C to 70°C

Flexible Power Cable

RVVP
Copper Core PVC Insulated And Sheathed Braided Shielded Flexible Cable

Temperature Rating :-15°C up to 70°C
Voltage Rating:300V/500V
Min Inner bending radius:10.0mm±0.2mm
Behaviour in free :Flame retardant to IEC 60332-1
U0/U450/750V
Flexible Shielded Cable

Rated AC voltage: U0/U450/750V
Permitted long-term operating temperature of conductor:
Low Voltage Single Core Soft
Flexible DC Cable

Max. admissible conductor temperature: 90 °C
Service temperature: - 20 - 90 °C
Min. Laying temperature: - 5 °C
Flexible Fireproof Cable
Multi-Core Copper Metallic Sheathed Mineral Insulated Fireproof Cable

Conductor: Compact stranded copper conductor, Cl.2 as per lEC60228
insulation: inorganic mineral insulating material
Filler: inorganic fiber filler
RVV
Multi-Core Copper Soft Flexible PVC House Wiring Building Electric Power Wire Cable

Conductor:Pure copper/Copper clad copper/Copper clad aluminum wire
Insulation:PVC
Sheath:PVC
Insulation colour:According to your needs

PVC Cable

VV
PVC Insulated LV Power Cable

Environment temperature should be no lower than 0ºC.
It is used to transmit and distribute power on the power line of A.C rated voltage 0.6/1kV.
450/750V
PVC Insulation Stranded Wiring Cable

Construction：Solid cu /PVC Insulation(H07V-U)
Stranded cu /PVC Insulation (H07V-R)
Flexible cu /PVC Insulation (H07V-K)
NYCY 4C
PVC Insulated LV Power Cable

Conductor: class 1, 2 copper or aluminum
Sectional area: 25 - 630mm2
Insulation: XLPE
Single Core
PVC Insulated Sheathed Copper Single Core Power Electric Wire Cable

Rated temperature: 150ºC
Rated voltage: 600V
Passes FT2 vertical flame test.

Rubber Flexible Cable

Flexible Rubber UL Wire
EPDM Insulation Underwater Electrical Cable

Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 V
Genernal
Genernal Rubber Soft Cables

Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
Maximum permitted operating temperature of conductor is 60°C. The long-term working temperature of conductor should be no longer than 65°C
Permitted lowest working temperature is -35°C.
Undergroud
Insulated Electric Flexible Rubber Power Cable Wire

Voltage: 450/750V.
Temperature Rating: conductor operation temperature -40°C to +60°C(90°C max).
It has the capacity to withstand weather, oil/grease, mechanical and thermal stresses.
450/750V
Silicone Cable

Rated AC voltage U0/U: 450/750V.
cable conductor long-term working temperature: Silicone rubber insulation and sheath: -60 ° C ~ 180 ° C.
cable laying and its ambient temperature: silicone rubber insulation and sheath is not lower than -60 ° C.

Screen Cable

RVVP3/KVVRP3
Screen Cable

Rated voltage: 300/300V, 450/750V, 600/1000V
Rated temperature: AVP-90, RVP-90 type 90 ºC, other models 70 ºC Characteristics description
Operating temperature (ºC): -40 to+60
Copper Conductor PVC/XlPE
Insulated PVC Sheathed Braid Screened Control Flexible Cable

Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70ºC;XLPE insulated: 90ºC.
RVVP1/KVVRP1
Screen Cable

Rated voltage: 300/300V, 450/750V, 600/1000V
Rated temperature: AVP-90, RVP-90 type 90 ºC, other models 70 ºC Characteristics description
Operating temperature (ºC): -40 to+60

Solid Cable

Flat Cable
Solid Power Cable

Voltage Uo/U 220V
Max. Permissible Continuous Operation Temperature of The
Conductor: 70°C
The Ambient Temperature Under Installation Should Not Below 0°C
Impedance (ohms): 100±2ohm
Solid Power Cable 3 Cores
Copper Conductor PVC Insulated and PVC Sheathed Round Wire

Rated voltage:450/750V
Max. Conductor Temperature.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temperature: 0ºC, after installation and only when cable is in a fixed position
5cores
Solid Power Cable

Rated voltage:450/750V
Max. Conductor Temperature.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temperature: 0ºC, after installation and only when cable is in a fixed position

Solar Cable

RPV RPVU
Copper Photovoltaic Cable

Rated Voltage：1000/2000v
Conductor：Copper
Insulation：XLPE
Application：Interconnection of solar photovoltaic;exposed wiring and raceways;direct earth burial
UL4703
600/1000/2000V Aluminum & Copper Solar PV Cable

Product Description：Solar PV Cable
600/1000/2000
VAluminum & Copper
H1Z2Z2-K
Solar Cable

Stranded Tinned Copper Conductor Flame Retardant Insulation Flame Retardant Sheath Cable

XLPE Cable

WDZA-YJV 1C
XLPE Insulation PO Sheath Single Core Power Cable

Voltage Rating Uo/U 0.6/1kV
Temperature Rating During installation -10°C to +50ºC
Fixed installation: -25°C to +90°C
Minimum Bending Radius:6 x overall diameter
WDZA-YJV 3core
XLPE Insulated MV Power Cable

conductor:stranded copper conductor
Insulation：XLPE
Sheathe:LOSH termite resistant
Standard:IEC60502 ,IEC60754,IEC61034-1
Low Voltage YJV Copper Conductor
XLPE Insulation LV Power Cable

Voltage Rating Uo/U 0.6/1kV
Temperature Rating During installation -10°C to +50ºC
Fixed installation: -25°C to +90°C
Minimum Bending Radius:6 x overall diameter
