AAAC
All Aluminum Alloy Conductor

AAAC is made from aluminium-magnesium silicon alloy of high electrical conductivity containing enough magnesium silicide,generally made out of aluminium alloy 6201.
Application Scenario：AAAC is used as a bare overhead conductor for power transmission and distrilbution lines, on aerial circuits that require a larger mechanical resistance than AAc, and a better corrosion resistance than ACSR.

AAAC All Aluminum Alloy Conductor Details

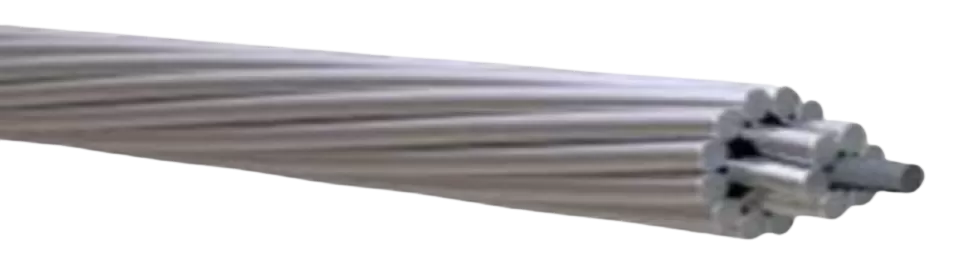

What Is AAAC Conductor?

AAAC are made out of high strength Aluminium-Magnesium-Silicon alloy. AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.

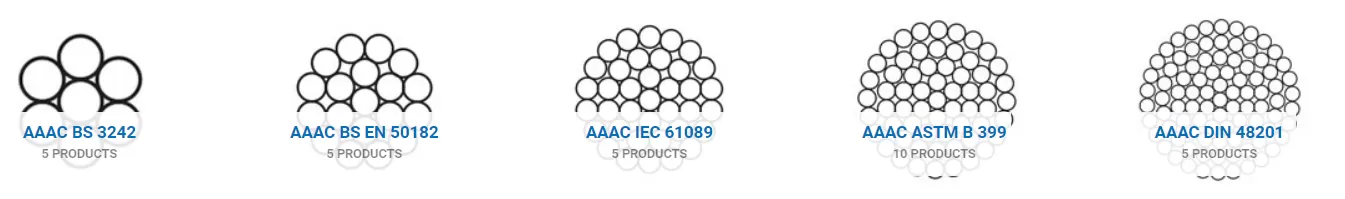

AAAC Conductor Construction

AAAC is made from aluminium-magnesium silicon alloy of high electrical conductivity containing enough magnesium silicide to give it better mechanical properties after treatment. These conductors are generally made out of aluminium alloy 6201.

AAAC Conductor Features

Superior corrosion resistant performance

Low electrical losses comparing with ACSR Conductors

Higher performance of operating temperature

Equal diameter of Aluminum-Magnesium-Silicone Alloy Wire strands, light weight

Almost double strength of EC Aluminum wires and thereby having a longer span

Specifications of AAAC All Aluminum Alloy Conductor

Code

Word

Size

(kcmil)

Strand- ing

Diameter

(ins.)

Cross-

Sectional

Area

(Sq. ins.)

Weight

Per

1000 ft.

(lbs.)

Rated

Strength

(lbs.)

Resistance

OHMS/1000 ft.

Allowable

Ampacity+

(Amps)

ACSR With

Equiv. Diam.

Approx.

EC Cond.

With

Equivalent

Resistance

Individual Wires

Complete Cables

DC @

20°C

AC @

75°C

Size

Stranding (AL/STL)

Akron

30.58

0.0661

0.198

0.0240

28.5

1110

.659

.785

107

6/1

Alton

48.69

0.0834

0.250

0.0382

45.4

1760

.414

.493

143

6/1

Ames

77.47

0.1052

0.316

0.0608

72.2

2800

.260

.310

191

6/1

Azusa

123.3

0.1327

0.398

0.0968

115.0

4280

.163

.195

256

1/0

6/1

1/0

Anaheim

155.4

0.1490

0.447

0.1221

144.9

5390

.130

.154

296

2/0

6/1

2/0

Amherst

195.7

0.1672

0.502

0.1537

182.5

6790

.103

.123

342

3/0

6/1

3/0

Alliance

246.9

0.1878

0.563

0.1939

230.2

8560

.0816

.0973

395

4/0

6/1

4/0

Butte

312.8

0.1283

0.642

0.2456

291.7

10500

.0644

.0769

460

266.8

26/7

266.8

Canton

394.5

0.1441

0.721

0.3099

367.9

13300

.0511

.0610

532

336.4

26/7

336.4

Cairo

465.4

0.1565

0.783

0.3655

434.0

15600

.0433

.0518

590

397.5

26/7

397.5

Darien

559.5

0.1716

0.858

0.4394

521.7

18800

.0360

.0431

663

477.0

26/7

477.0

Elgin

652.4

0.1853

0.927

0.5124

608.4

21900

.0309

.0371

729

556.5

26/7

556.5

Flint

740.8

0.1415

0.991

0.5818

690.8

24400

.0272

.0327

790

636.0

26/7

636.0

Greeley

927.2

0.1583

1.108

0.7282

864.6

30500

.0217

.0263

908

795.0

26/7

795.0

+Ampacity based on 75°C conductor temperature, 25°C ambient temperature, 2 ft/sec. wind in sun, emissivity 0.5, 52.5% conductivity.

Code Word	Size (kcmil)	Strand- ing	Diameter (ins.)		Cross- Sectional Area (Sq. ins.)	Weight Per 1000 ft. (lbs.)	Rated Strength (lbs.)	Resistance OHMS/1000 ft.		Allowable Ampacity+ (Amps)	ACSR With Equiv. Diam.		Approx. EC Cond. With Equivalent Resistance
Code Word	Size (kcmil)	Strand- ing	Individual Wires	Complete Cables	Cross- Sectional Area (Sq. ins.)	Weight Per 1000 ft. (lbs.)	Rated Strength (lbs.)	DC @ 20°C	AC @ 75°C	Allowable Ampacity+ (Amps)	Size	Stranding (AL/STL)	Approx. EC Cond. With Equivalent Resistance
Akron	30.58	7	0.0661	0.198	0.0240	28.5	1110	.659	.785	107	6	6/1	6
Alton	48.69	7	0.0834	0.250	0.0382	45.4	1760	.414	.493	143	4	6/1	4
Ames	77.47	7	0.1052	0.316	0.0608	72.2	2800	.260	.310	191	2	6/1	2
Azusa	123.3	7	0.1327	0.398	0.0968	115.0	4280	.163	.195	256	1/0	6/1	1/0
Anaheim	155.4	7	0.1490	0.447	0.1221	144.9	5390	.130	.154	296	2/0	6/1	2/0
Amherst	195.7	7	0.1672	0.502	0.1537	182.5	6790	.103	.123	342	3/0	6/1	3/0
Alliance	246.9	7	0.1878	0.563	0.1939	230.2	8560	.0816	.0973	395	4/0	6/1	4/0
Butte	312.8	19	0.1283	0.642	0.2456	291.7	10500	.0644	.0769	460	266.8	26/7	266.8
Canton	394.5	19	0.1441	0.721	0.3099	367.9	13300	.0511	.0610	532	336.4	26/7	336.4
Cairo	465.4	19	0.1565	0.783	0.3655	434.0	15600	.0433	.0518	590	397.5	26/7	397.5
Darien	559.5	19	0.1716	0.858	0.4394	521.7	18800	.0360	.0431	663	477.0	26/7	477.0
Elgin	652.4	19	0.1853	0.927	0.5124	608.4	21900	.0309	.0371	729	556.5	26/7	556.5
Flint	740.8	37	0.1415	0.991	0.5818	690.8	24400	.0272	.0327	790	636.0	26/7	636.0
Greeley	927.2	37	0.1583	1.108	0.7282	864.6	30500	.0217	.0263	908	795.0	26/7	795.0

+Ampacity based on 75°C conductor temperature, 25°C ambient temperature, 2 ft/sec. wind in sun, emissivity 0.5, 52.5% conductivity.

AAAC All Aluminum Alloy Conductor
