Suitable for rated voltage U0/U 300/500V power,metallurgy,petrochemical and other industries to electronic computer-based automatic control system,computer distributed control system,automatic control system as the control line and testing instruments with electronic computer cable.
Computer cable | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
DJYPV | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYVP | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYPVP | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYPV22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYVP22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYP2VP2-22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYVP32 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYJPV | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYJVP | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYJPVP | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYJPV22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYJVP22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYJP2VP2-22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYJVP32 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYPVR | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYVPR | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYPVRP | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
DJYPVR22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYVRP22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS5308 |
DJYP2VP2R-22 | 300/500V | (1~50；×2,(1~24；×3 | 0.5~2.5mm² | TICW/06-2009 BS 5308 |
一、Range of application:
Suitable for rated voltage U0/U 300/500V power,metallurgy,petrochemical and other industries to electronic computer-basedaerial-bundled-cables-medium-voltage automatic control system,computer distributed control system,automatic control system as the control line and testing instruments with electronic computer cable.It is used for cables with high anti-interference performance requirements,and can also be used for cables with high anti-interference performance of testing instruments and instruments.
二、Product feature:
The computer cable adopts a shielding structure with good anti-interference performance.For polyethylene insulation with high resistance and good voltage resistance,it can not only meet the requirements of transmission performance,but also ensure the service life of the cable.In explosive hazardous areas such as power,mining,and gas engineering,cables are required to have explosion-proof,safety,and other characteristics.Compared with ordinary wires and cables,computer cables have better shielding effect and better safety performance.

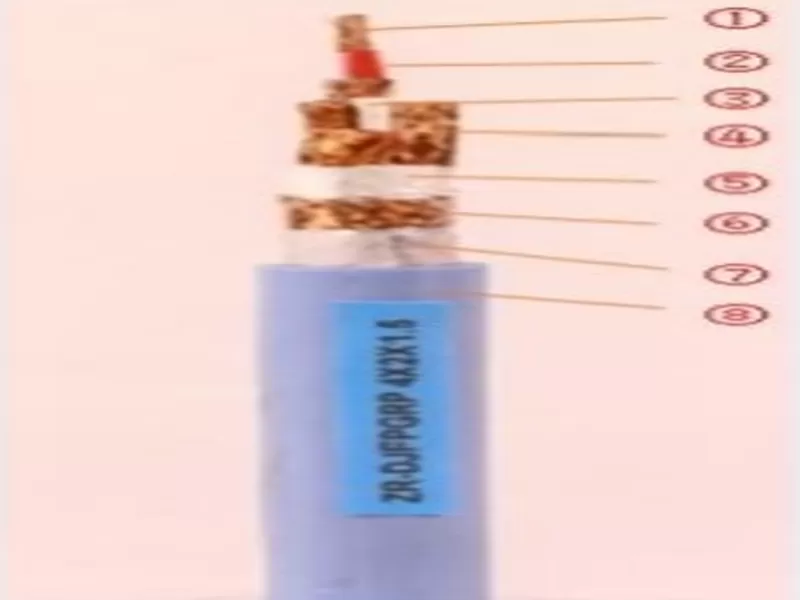

①:Stranded copper conductor；
②:Fluoroplastic insulation material；
③:Non hygroscopic filling material；
④:Copper wire braided shielding；
⑤:(Non hygroscopic wrapping；
⑥:Copper wire braided total shielding；
⑦:Non hygroscopic wrapping；
⑧:Silicone rubber outer sheath
