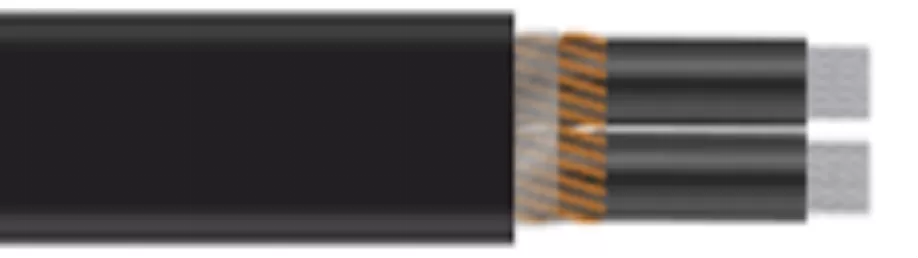

Underground Distribution Cables. Jacketed Two-Conductor Parallel

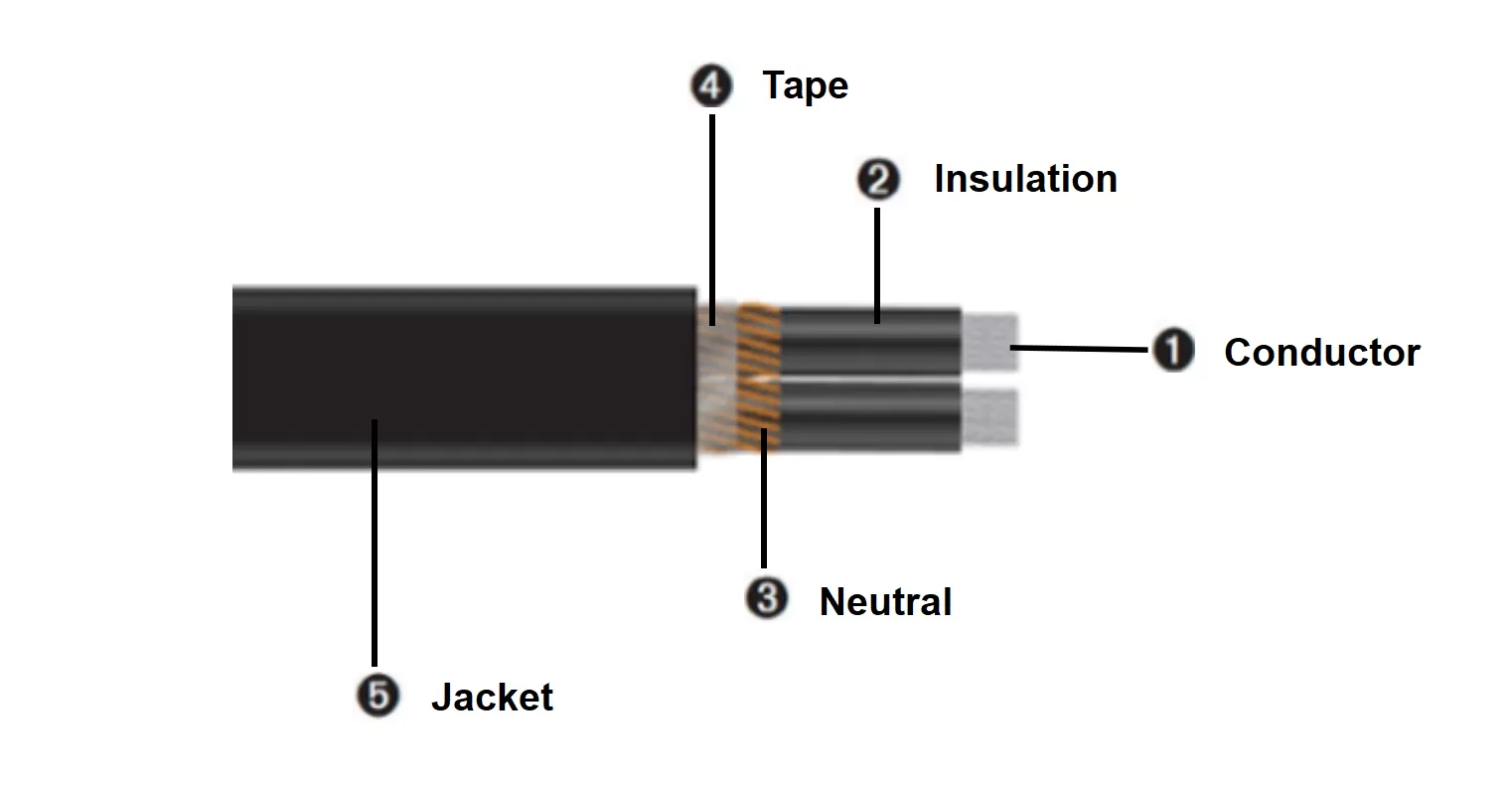

Underground Service Entrance Cable is typically used to bring power from the utility's electrical service to the main service panel of a building or residence. USEB cable is typically made up of multiple conductors that are insulated and wrapped in a protective jacket.
CSA C22.2 No. 52
Size AWG/Kcmil | Reduced Neutral Conductor | Insulation Thickness mm. | Jacket Thickness mm.. | Thickness mm*mm | |
Size AWG/Kcmil | Strands Nos | ||||
4 | 8 | 7 | 1.14 | 2.03 | 15*22 |
2 | 6 | 11 | 1.14 | 2.03 | 16*25 |
1 | 5 | 13 | 1.4 | 2.03 | 17*28 |
1/0 | 4 | 17 | 1.4 | 2.03 | 18*30 |
2/0 | 3 | 21 | 1.4 | 2.03 | 19*32 |
3/0 | 2 | 26 | 1.4 | 2.03 | 20*34 |
4/0 | 1 | 21 | 1.4 | 2.03 | 24*39 |
250 | 1/0 | 26 | 1.65 | 2.03 | 24*40 |
300 | 4/0 | 21 | 1.65 | 2.79 | 29*46 |
350 | 3/0 | 26 | 1.65 | 2.79 | 29*48 |
500 | 250 | 25 | 1.65 | 2.79 | 33*55 |
