With weather resistance,high temperature resistance,friction resistance and other characteristics,and has a long service life.
Photovoltaic Cable | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
PV1-F | AC0.6/1kV或DC1.8kV AC0.6/1kV or DC1.8kV | 1 | 1.5~35mm² | 2 Pfg1169/08.2007 |
H1Z2Z2-K | AC1.0/1.0kV或DC1.5kV AC1.0/1.0kVor DC1.5kV | 1 | 1.5~35mm² | En50618:2014 |
PV | AC:600V,1000V,2000V | 1 | 14AWG~500Kcmil | CSA C22.2 No.38 UL44 |
RPV | AC:600V,1000V,2000V | 1 | 14AWG~500Kcmil | CSA C22.2 No.38 UL44 |
RPVU | AC:1000V,2000V | 1 | 14AWG~500Kcmil | CSAC22.2 No.38 UL44 |
ZKLA | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL4703 |
ZKLA3 | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL4703 |
ZKLA7 | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL4703 |
ZKST | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL44 |
ZKST3 | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL44 |
ZKST7 | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL44 |
ZKUV | AC:600V,1000V,2000V | 1 | 18AWG~500Kcmil | UL44 |
Special cable suitable for solar photovoltaic modules on the system.
With weather resistance,high temperature resistance,friction resistance and other characteristics,and has a long service life.The high quality oxygen free tinned copper conductor guarantees excellent conduction effect. The high performance insulating materials and sheathing materials crosslinked by high-energy electron accelerator radiation have reliable insulating and mechanical properties.

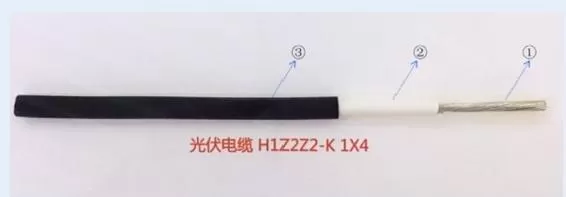

①:Multi strand tinned copper conductor;
②:Low smoke halogen-free polyolefin insulation;
③:Low smoke halogen-free polyolefin jacket
