Control wire and cable is used as the connecting line between allkinds of electrical appliances,instruments and automatic devices,mainly used for control,monitoring interlocking loop and protection line and other occasions,playing a role in transmission control,signal and other roles.
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJYP | 450/750V | 2~61 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJYP2 | 450/750V | 2~61 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJYP2-23 | 450/750V | 2~61 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJYP3 | 450/750V | 2~61 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJYP4 | 450/750V | 2~61 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJY33 | 450/750V | 2~61 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
(WDZA-,WDZB-,WDZC-,WDZ N-)KYJYP33 | 450/750V | 2~19 | 0.5~2.5mm² | GB/T9330-2020 |
2~19 | 4~10mm² | |||
KFF | 450/750V, 0.6/1kV | 2~19 | 0.75~2.5mm² | TICW/03-2009 |
2~12 | 4~6mm² | |||
KFFP | 450/750V, 0.6/1kV | 2~19 | 0.75~2.5mm² | TICW/03-2009 |
2~12 | 4~6mm² | |||
KFFP2 | 450/750V, 0.6/1kV | 2~19 | 0.75~2.5mm² | TICW/03-2009 |
2~12 | 4~6mm² | |||
KFFR | 450/750V, 0.6/1kV | 2~19 | 0.75~2.5mm² | TICW/03-2009 |
2~12 | 4~6mm² |
Control wire and cable is used as the connecting line between allkinds of electrical appliances,instruments and automatic devices,mainly used for control,monitoring interlocking loop and protection line and other occasions,playing a role in transmission control,signal and other roles.Widely used in a variety of industrial and mining enterprises,transportation and other important economic departments,such as power plants, substations,power lines and petrochemical enterprises.For fluorine plastic and silicone rubber insulation control cable,it is suitable for high temperature resistance or acid and alkali corrosion resistance requirements,whose rated voltage U0/U is 0.6/1kV and below the control,monitoring loop and protection line and other occasions used in the control cable.
With low temperature resistance,high temperature resistance,rat ant resistance,fire resistance,ozone resistance,pressure resistance,flame retardant and other characteristics,and has a stable transmission of electric energy in different harsh environment.The installation operation is simple and convenient,the maintenance workload is small,the cost is low,the performance is excellent.

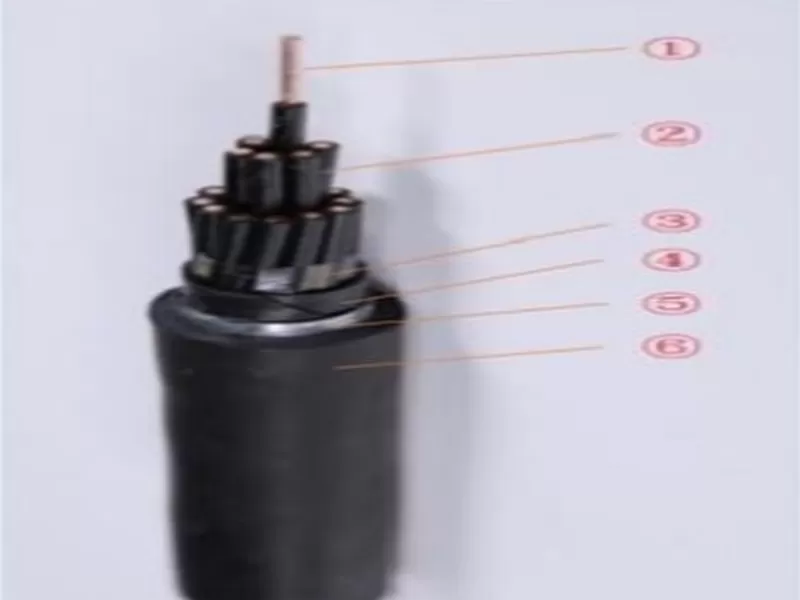

①:Solid copper conductor
②:Polyvinyl chloride insulation;pvc insulation
③:Non-hygroscopic material wrapping
④:PVC inner sheath
⑤:Steel wire armoured
⑥:PVC outer sheath
