The cable is suitable for transmission and distribution of high power energy in the main line of power system.
Power Cable Low Voltage | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
vV | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
YJV | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
YJY | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
VV22 | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
YJV22 | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
YJY23 | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
VV32 | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
YJV32 | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
YJY33 | AC:0.6/1kV | 1~5 | 1.5~500mm² | EN60811-100:2012 |
The cable is suitable for transmission and distribution of high-power energy in the main line of power system.It is often used in urban underground power grid,power station outlet line,internal power supply of industrial and mining enterprises and underwater transmission line across the river and sea.
With low temperature resistance,high temperature resistance,rat ant resistance,fire resistance,ozone resistance,pressure resistance,flame retardant and other characteristics,and has a stable transmission of electric energy in different harsh environment.The installation operation is simple and convenient,the maintenance workload is small,the cost is low,the performance is excellent.

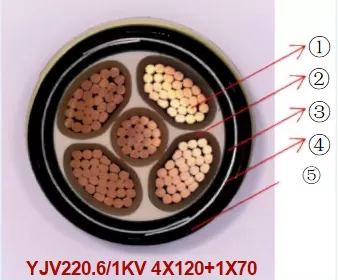

①:Multi strand copper conductor;
②:Crosslinked polyethylene insulation;
③:Polyvinyl chloride inner jacket;
④:Galvanized steel strip;
⑤:Polyvinyl chloride outerjaket
