- Voltage: 450/750V.
-Temperature Rating: conductor operation temperature -40°C to +60°C(90°C max).
-It has the capacity to withstand weather, oil/grease, mechanical and thermal stresses.

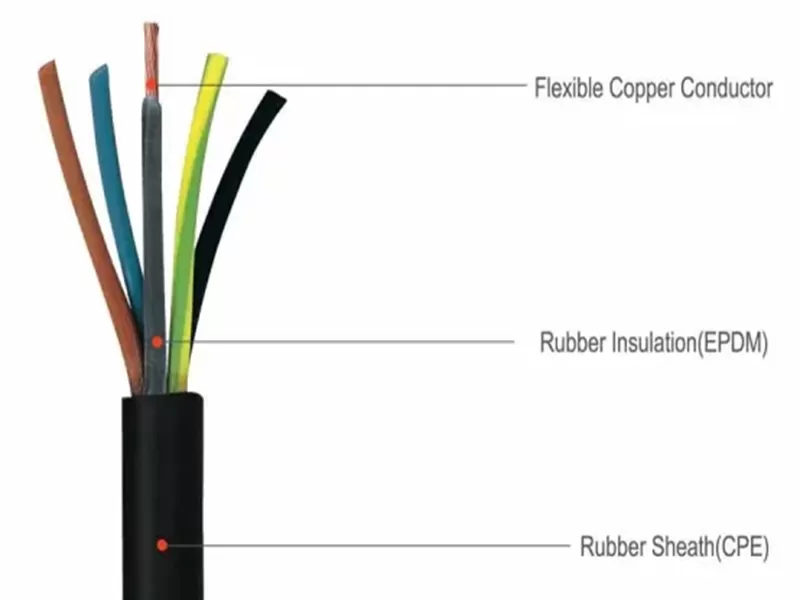

Conductors : Class 5 flexible plain copper conductor
Insulation : Ethylene Propylene (EPR) Rubber / EPDM Rubber
Sheath : PCP(Polychioroprene) /CPE rubber compound.
Number of cable cores: 1-5 cores
products parameter:
NO. OF | NOMINAL CROSS | NOMINAL | NOMINAL OVERALL | NOMINAL |
mm² | mm | mm | kg/km | |
1 | 1.5 | 0.8 | 5.8 | 52 |
1 | 2.5 | 0.9 | 6.5 | 67 |
1 | 4 | 1 | 7.4 | 92 |
1 | 6 | 1 | 8.1 | 119 |
1 | 10 | 1.2 | 9.8 | 185 |
1 | 16 | 1.2 | 11.35 | 258 |
1 | 25 | 1.4 | 13.3 | 375 |
1 | 35 | 1.4 | 14.6 | 485 |
1 | 50 | 1.6 | 17.2 | 669 |
1 | 70 | 1.6 | 19.35 | 892 |
1 | 95 | 1.8 | 22.2 | 1160 |
1 | 120 | 1.8 | 24.3 | 1436 |
1 | 150 | 2 | 25.9 | 1748 |
1 | 185 | 2.2 | 29.7 | 2142 |
1 | 240 | 2.4 | 31.5 | 2698 |
1 | 300 | 2.6 | 36.5 | 3348 |
1 | 400 | 2.8 | 40.4 | 4293 |
1 | 500 | 3 | 42.6 | 5262 |
1 | 630 | 3 | 47.2 | 6790 |
2 | 1 | 0.8 | 8.1 | 94 |
2 | 1.5 | 0.8 | 9 | 120 |
2 | 2.5 | 0.9 | 10.7 | 173 |
2 | 4 | 1 | 12.3 | 239 |
2 | 6 | 1 | 13.8 | 313 |
2 | 10 | 1.2 | 18.6 | 563 |
2 | 16 | 1.2 | 21.7 | 830 |
2 | 25 | 1.4 | 25.8 | 1211 |
3 | 1 | 0.8 | 8.74 | 117 |
3 | 1.5 | 0.8 | 9.68 | 147 |
3 | 2.5 | 0.9 | 11.48 | 223 |
3 | 4 | 1 | 13.2 | 297 |
3 | 6 | 1 | 14.78 | 390 |
3 | 10 | 1.2 | 19.9 | 705 |
3 | 16 | 1.2 | 23.31 | 1031 |
3 | 25 | 1.4 | 27.7 | 1512 |
3 | 35 | 1.4 | 30.2 | 1907 |
3 | 50 | 1.6 | 35.8 | 2651 |
3 | 70 | 1.6 | 40.1 | 3484 |
3 | 95 | 1.8 | 46.4 | 4594 |
4 | 1 | 0.8 | 9.63 | 142 |
4 | 1.5 | 0.8 | 10.63 | 180 |
4 | 2.5 | 0.9 | 12.6 | 260 |
4 | 4 | 1 | 14.6 | 336 |
4 | 6 | 1 | 16.4 | 449 |
4 | 10 | 1.2 | 21.8 | 833 |
4 | 16 | 1.2 | 25.4 | 1138 |
4 | 25 | 1.4 | 30.7 | 1714 |
4 | 35 | 1.4 | 33.4 | 2204 |
4 | 50 | 1.6 | 39.6 | 3029 |
4 | 70 | 1.6 | 44.9 | 4121 |
4 | 95 | 1.8 | 51.9 | 5361 |
4 | 120 | 1.8 | 61.3 | 7400 |
5 | 1.5 | 0.8 | 11.8 | 206 |
5 | 2.5 | 0.9 | 14 | 297 |
5 | 4 | 1 | 16.2 | 422 |
5 | 6 | 1 | 18.2 | 567 |
5 | 10 | 1.2 | 24 | 1010 |
5 | 16 | 1.2 | 28.2 | 1400 |
5 | 25 | 1.4 | 33.9 | 2096 |
5 | 35 | 1.4 | 37.2 | 2700 |
5 | 50 | 1.6 | 44 | 3730 |
5 | 70 | 1.6 | 54 | 4945 |
5 | 95 | 1.8 | 63 | 6430 |
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2:how about your quatity?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,plz consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
