Suitable for distribution network,industrial installations or other areas requiring large capacity of electricity,used for fixed laying in AC 50Hz,rated voltage 6kV~35kV power transmission and distribution lines, the main function is to transfer electric energy.
Power Cable Medium Voltage | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
VV | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
YJV | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
YJY | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
VV22 | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
YJV22 | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
YJY23 | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
VV32 | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
YJV32 | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
YJY33 | AC:3.6/6kV、6/6kV、6/10kV、 8.7/10kV、8.7/15kV、12/20kV、 18/20kV、18/30kV | 1、3 | 1.5~500mm² | EN60811-100:2012 |
Suitable for distribution network,industrial installations or other areas requiring large capacity of electricity,used for fixed laying in AC 50Hz,rated voltage 6kV~35kV power transmission and distribution lines, the main function is to transfer electric energy.
With low temperature resistance,high temperature resistance,rat ant resistance,fire resistance,ozone resistance,pressure resistance,flame retardant and other characteristics,and With high availability,low probability of being affected by temperature environment,it can ensure stable transmission and strong reliability.Easy to install and operate,low maintenance cost of cables and lines.

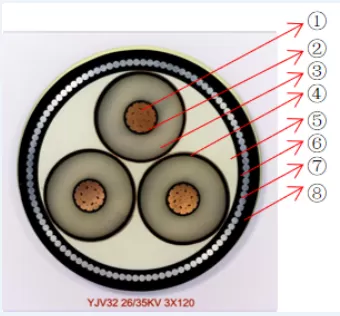

①:Multi strand copper conducto;
②:Conductor shield;
③:Crosslinked polyethylene insulation;
④:Insulating shield;
⑤:Non-hygroscopic material filling;
⑥:Polyvinyl chloride inner jacket;
⑦:Galvanized steel wire;
⑧:(Polyvinyl chloride outerjaket。
