It is suitable for household electrical appliances,power tools and all kinds of mobile electrical equipment with a rated AC voltage of 450/750V and below.
Rubber sheathed cable | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
60245IEC53(YZ； | 300/500V | 2~5 | 0.75~2.5mm² | GB/T5013.4-2008/IEC 60245-4:2004 |
YZ | 300/500V | 2~5 | 4~6mm² | JB/T8735.2-2016 |
6 | 0.75~6mm² | |||
3+1,3+2,4+1 | 1.5~6mm² | |||
60245IEC57(YZW； | 300/500V | 2~5 | 0.75~2.5mm² | GB/T5013.4-2008/IEC 60245-4:2004 |
Yzw | 300/500V | 2~5 | 4~6mm² | JB/T8735.2-2016 |
2~5 | 4~6mm² | |||
6 | 0.75~6mm² | |||
3+1,3+2,4+1 | 1.5~6mm² | |||
YC | 450/750V | 1 | 1.5~400mm² | JB/T8735.2-2016 |
2 | 1.0~95mm² | |||
3~5 | 1.0~240mm² | |||
3+1,3+2,4+1 | 1.5~240mm² | |||
60245IEC66(YCW； | 450/750V | 1 | 1.5~400mm² | GB/T5013.4-2008/IE C60245-4:2004 |
2,5 | 1~25mm² | |||
3 | 1~95mm² | |||
4 | 1~150mm² | |||
YCW | 450/750V | 2 | 35~95mm² | JB/T8735.2-2016 |
3 | 120~150mm² | |||
4 | 185~240mm² | |||
5 | 35~150mm² | |||
3+1,3+2,4+1 | 1.5~240mm² | |||
60245IEC81(YH； | / | 1 | 16~95mm² | GB/T5013.6-2008/IE C60245-6:1994 |
It is suitable for household electrical appliances,power tools and all kinds of mobile electrical equipment with a rated AC voltage of 450/750V and below.The"W"derived cable has weather resistance and certain oil resistance,which is suitable for use outside the room orin contact with oil.
Rubber sheathed cable is made of multiple strands of fine copper wire as conductor,with good electrical conductivity,excellent mechanical properties,excellent bending resistance,oil resistance,can withstand greater mechanical external force,used for frequently moving electrical equipment power connection.

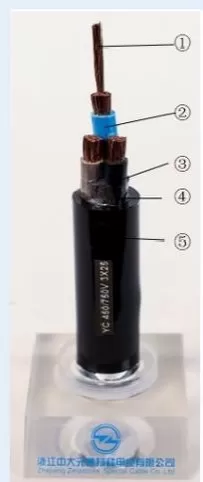

①:Multiple stranded copper conductor；
②:Ethylene propylene rubber insulation；
③:Non-hygroscopic material filling；
④:Non-hygroscopic material wrapping；
⑤:CPE over sheath；
