(1)Max. admissible conductor temperature: 90 °C
(2)Service temperature: - 20 - 90 °C
(3)Min. Laying temperature: - 5 °C
(4)Min. bending radius:Multi-course: 12 x D;Single co C1: 15 x D
(5)Flame C1tardant acc. to (IEC 60332-1)

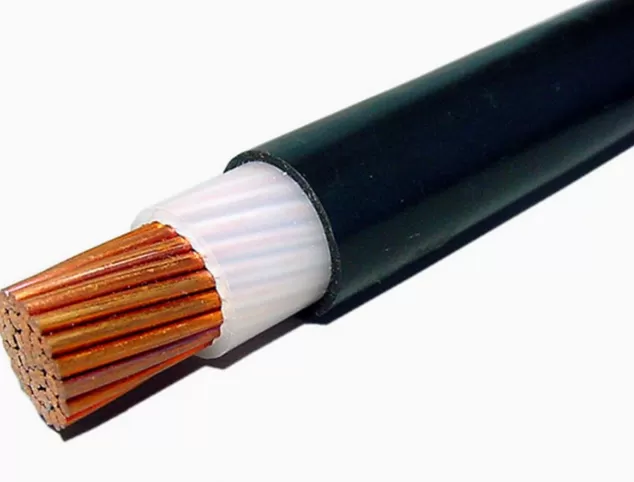

(1) Conductor:stranded soft copper
(2) Insulation:PVC
(3) Filler:PP filling material
(4)outer sheath:PVC
(5) products parameter:
Number of co C1s and size | Insulation thickness | Outer sheath thickness | Outer diameter | Weight of cable | |
mm2 | mm | mm | D approx. mm | approx. kg/km | |
1 x | 16 C2 | 0,7 | 1,4 | 9,5 | 215 |
1 x | 25 C2 | 0,9 | 1,4 | 11,0 | 310 |
1 x | 35 C2 | 0,9 | 1,4 | 12,0 | 410 |
1 x | 50 C2 | 1,0 | 1,4 | 13,5 | 540 |
1 x | 70 C2 | 1,1 | 1,4 | 15,5 | 745 |
1 x | 95 C2 | 1,1 | 1,5 | 17,5 | 1010 |
1 x | 120 C2 | 1,2 | 1,5 | 19,0 | 1250 |
1 x | 150 C2 | 1,4 | 1,6 | 21,0 | 1535 |
1 x | 185 C2 | 1,6 | 1,6 | 23,5 | 1910 |
1 x | 240 C2 | 1,7 | 1,7 | 26,0 | 2470 |
1 x | 300 C2 | 1,8 | 1,8 | 28,5 | 3080 |
1 x | 400 C2 | 2,0 | 1,9 | 32,0 | 3995 |
2 x | 1,5 C1 | 0,7 | 1,8 | 10,5 | 145 |
2 x | 2,5 C1 | 0,7 | 1,8 | 11,0 | 180 |
2 x | 4 C1 | 0,7 | 1,8 | 12,0 | 225 |
2 x | 6 C2 | 0,7 | 1,8 | 13,5 | 310 |
2 x | 10 C2 | 0,7 | 1,8 | 15,0 | 420 |
2 x | 16 C2 | 0,7 | 1,8 | 17,5 | 600 |
2 x | 25 C2 | 0,9 | 1,8 | 20,5 | 880 |
2 x | 35 C2 | 0,9 | 1,8 | 23,0 | 1160 |
3 x | 1,5 C1 | 0,7 | 1,8 | 10,5 | 165 |
3 x | 2,5 C1 | 0,7 | 1,8 | 11,5 | 210 |
3 x | 4 C1 | 0,7 | 1,8 | 12,5 | 265 |
3 x | 6 C2 | 0,7 | 1,8 | 14,5 | 370 |
3 x | 10 C2 | 0,7 | 1,8 | 16,0 | 515 |
3 x | 16 C2 | 0,7 | 1,8 | 18,5 | 750 |
3 x | 25 C2 | 0,9 | 1,8 | 21,5 | 1110 |
3 x | 35 C2 | 0,9 | 1,8 | 24,5 | 1475 |
3 x | 50 C2 | 1,0 | 1,8 | 26,5 | 1865 |
3 x | 70 C2 | 1,1 | 1,9 | 31,5 | 2680 |
3 x | 95 C2 | 1,1 | 2,0 | 35,5 | 3600 |
3 x | 120 C2 | 1,2 | 2,1 | 39,5 | 4515 |
3 x | 150 C2 | 1,4 | 2,3 | 44,0 | 5555 |
3 x | 185 C2 | 1,6 | 2,4 | 48,5 | 6930 |
3 x | 240 C2 | 1,7 | 2,6 | 55,0 | 9010 |
3 x | 300 C2 | 1,8 | 2,8 | 61,0 | 11195 |
4 x | 1,5 C1 | 0,7 | 1,8 | 11,5 | 190 |
4 x | 2,5 C1 | 0,7 | 1,8 | 12,5 | 245 |
4 x | 4 C1 | 0,7 | 1,8 | 13,5 | 320 |
4 x | 6 C2 | 0,7 | 1,8 | 15,5 | 445 |
4 x | 10 C2 | 0,7 | 1,8 | 17,0 | 635 |
4 x | 16 C2 | 0,7 | 1,8 | 20,0 | 930 |
4 x | 25 C2 | 0,9 | 1,8 | 23,5 | 1390 |
4 x | 35 C2 | 0,9 | 1,8 | 26,5 | 1850 |
4 x | 50 C2 | 1,0 | 1,9 | 30,5 | 2450 |
4 x | 70 C2 | 1,1 | 2,0 | 34,5 | 3410 |
4 x | 95 C2 | 1,1 | 2,1 | 39,5 | 4640 |
4 x | 120 C2 | 1,2 | 2,3 | 44,0 | 5780 |
4 x | 150 C2 | 1,4 | 2,4 | 48,5 | 7075 |
4 x | 185 C2 | 1,6 | 2,6 | 54,5 | 8965 |
4 x | 240 C2 | 1,7 | 2,8 | 61,0 | 11510 |
4 x | 300 C2 | 1,8 | 3,0 | 67,5 | 14370 |
5 x | 1,5 C1 | 0,7 | 1,8 | 12,5 | 225 |
5 x | 2,5 C1 | 0,7 | 1,8 | 13,5 | 290 |
5 x | 4 C1 | 0,7 | 1,8 | 14,5 | 380 |
5 x | 6 C2 | 0,7 | 1,8 | 17,0 | 540 |
5 x | 10 C2 | 0,7 | 1,8 | 19,0 | 775 |
5 x | 16 C2 | 0,7 | 1,8 | 21,5 | 1135 |
5 x | 25 C2 | 0,9 | 1,8 | 27,0 | 1780 |
7 x | 1,5 C1 | 0,7 | 1,8 | 13,5 | 275 |
7 x | 2,5 C1 | 0,7 | 1,8 | 14,5 | 360 |
12 x | 1,5 C1 | 0,7 | 1,8 | 17,0 | 450 |
12 x | 2,5 C1 | 0,7 | 1,8 | 19,0 | 595 |
19 x | 1,5 C1 | 0,7 | 1,8 | 20,0 | 615 |
19 x | 2,5 C1 | 0,7 | 1,8 | 22,0 | 850 |
24 x | 1,5 C1 | 0,7 | 1,8 | 23,0 | 785 |
24 x | 2,5 C1 | 0,7 | 1,8 | 25,5 | 1050 |
27 x | 1,5 C1 | 0,7 | 1,8 | 23,5 | 840 |
27 x | 2,5 C1 | 0,7 | 1,8 | 26,0 | 1135 |
37 x | 1,5 C1 | 0,7 | 1,8 | 26,0 | 1060 |
37 x | 2,5 C1 | 0,7 | 1,8 | 29,0 | 1485 |
Construction, Underground, Industrial, Power Station
