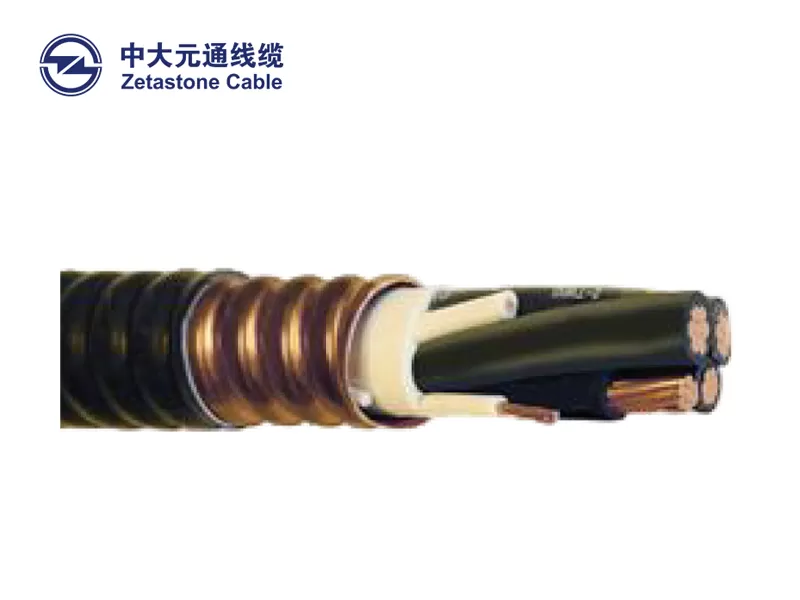

RC RA Copper 2-Hour Fire Resistive Cables Manufacturer

RC RA Copper 2-Hour Fire Resistive Cables Standards

• CSA Listed type RC90 per CSA 22.2 No. 123

• 2 Hour Fire Rating per ULC S139

• Electrical Circuit Integrity System #120 (FHIT7) –ULC Canada

• Wet location rating 90°C

• Meets NFPA 130 for Transit and NFPA 502 for tunnel applications

• Single conductor ampacity when installed per CEC Table 1

• FHIT7 120, 120A, 60 & 60A

RC RA Copper 2-Hour Fire Resistive Cables Data

Power

Conductor

Nominal Core Diameter

Nominal Armor

Diameter

Nominal Cable

Diameter over

Outer Jacket

Approximate

Net Weight

Size

(AWG kcmil)

No.of Conductors

(Lbs/1000 ft)

kg/km

0.49

12.446

0.82

20.828

0.92

23.368

395

587.82

0.52

13.208

0.82

20.828

0.92

23.368

425

632.47

0.57

14.478

0.89

22.606

0.99

25.146

480

714.32

0.53

13.462

0.82

20.828

0.92

23.368

415

617.59

0.56

14.224

0.89

22.606

0.99

25.146

475

706.88

0.62

15.748

0.94

23.876

0.104

2.6416

575

855.69

0.58

14.732

0.89

22.606

0.99

25.146

475

706.88

0.61

15.494

0.94

23.876

1.04

26.416

542

806.58

0.67

17.018

25.4

1.11

28.194

635

944.98

0.72

18.288

1.04

26.416

1.15

29.21

675

1004.51

0.8

20.32

1.16

29.464

1.26

32.004

815

1212.85

0.8

20.32

1.16

29.464

1.26

32.004

840

1250.06

0.89

22.606

1.22

30.988

1.32

33.528

990

1473.28

0.91

23.114

1.24

31.496

1.34

34.036

1140

1696.51

25.4

1.35

34.29

1.45

36.83

1285

1912.29

0.97

24.638

1.3

33.02

1.4

35.56

1210

1800.68

1.07

27.178

1.41

35.814

1.51

38.354

1475

2195.04

1.04

26.416

1.41

35.814

1.51

38.354

1400

2083.43

1.15

29.21

1.5

38.1

1.6

40.64

1700

2529.88

1.21

30.734

1.59

40.386

1.71

43.434

1715

2552.20

1.34

34.036

1.73

43.942

1.85

46.99

2125

3162.35

1/0

0.66

16.764

25.4

1.11

28.194

815

1212.85

1/0

1.29

32.766

1.67

42.418

1.79

45.466

1990

2961.45

1/0

1.43

36.322

1.82

46.228

1.94

49.276

2485

3698.09

2/0

0.7

17.78

1.04

26.416

1.15

29.21

925

1376.55

2/0

1.39

35.306

1.8

45.72

1.92

48.768

2345

3489.74

2/0

1.54

39.116

1.95

49.53

2.07

52.578

2935

4367.76

3/0

0.75

19.05

1.08

27.432

1.18

29.972

1055

1570.01

3/0

1.49

37.846

1.92

48.768

2.04

51.816

2755

4099.89

3/0

1.68

42.672

2.12

53.848

2.25

57.15

3530

5253.22

4/0

0.81

20.574

1.16

29.464

1.26

32.004

1235

1837.88

4/0

1.62

41.148

2.04

51.816

2.16

54.864

3305

4918.38

4/0

1.82

46.228

2.26

57.404

2.41

61.214

4205

6257.73

250

0.89

22.606

1.22

30.988

1.32

33.528

1410

2098.31

250

1.8

45.72

2.26

57.404

2.41

61.214

3870

5759.19

250

50.8

2.46

62.484

2.63

66.802

4925

7329.21

350

0.99

25.146

1.35

34.29

1.45

36.83

1795

2671.25

350

2.02

51.308

2.48

62.992

2.63

66.802

5015

7463.14

350

2.25

57.15

2.71

68.834

2.86

72.644

6420

9554.01

500

1.13

28.702

1.48

37.592

1.6

40.64

2350

3497.19

500

2.3

58.42

2.82

71.628

2.97

75.438

6720

10000.46

500

2.6

66.04

3.13

79.502

3.3

83.82

8740

13006.55

750

1.34

34.036

1.73

43.942

1.85

46.99

3285

4888.62

Have a question?

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions



Address
No 7-1 Mingxing Village, Qianyuan Town, Deging County, Huzhou, Zhejiang


Email
Dengzm@zetastonecables.com


Phone
+(86)187-5158-6011

RC RA

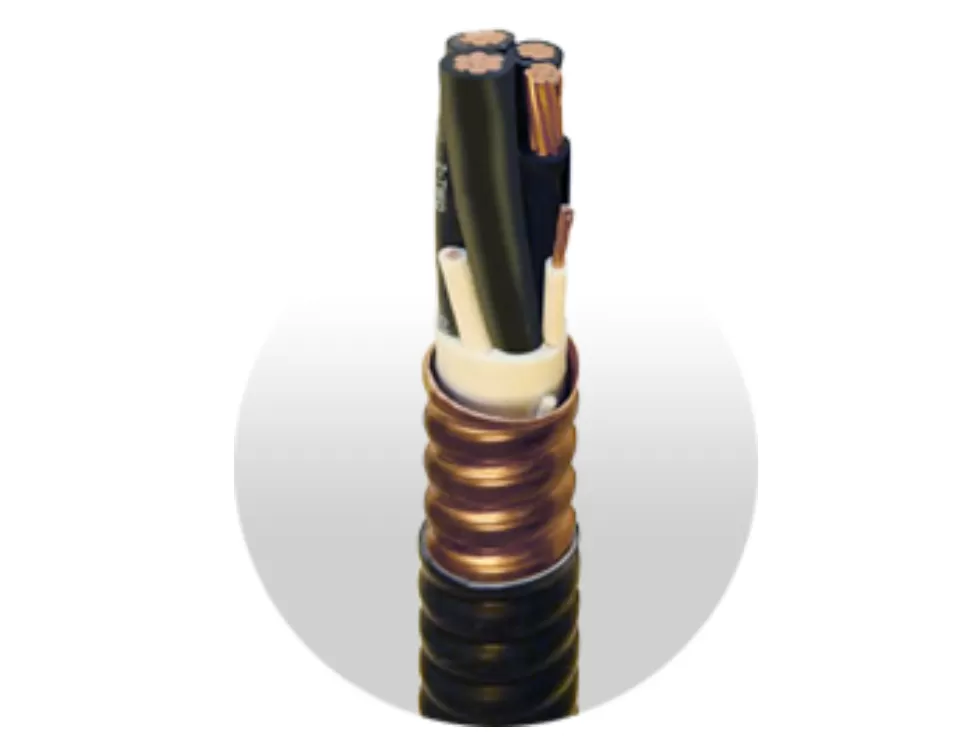

Copper 2-Hour Fire Resistive Cables

RC RA Copper 2-Hour Fire Resistive Cables Applications

RC RA Copper 2-Hour Fire Resistive Cables Standards

RC RA Copper 2-Hour Fire Resistive Cables Data

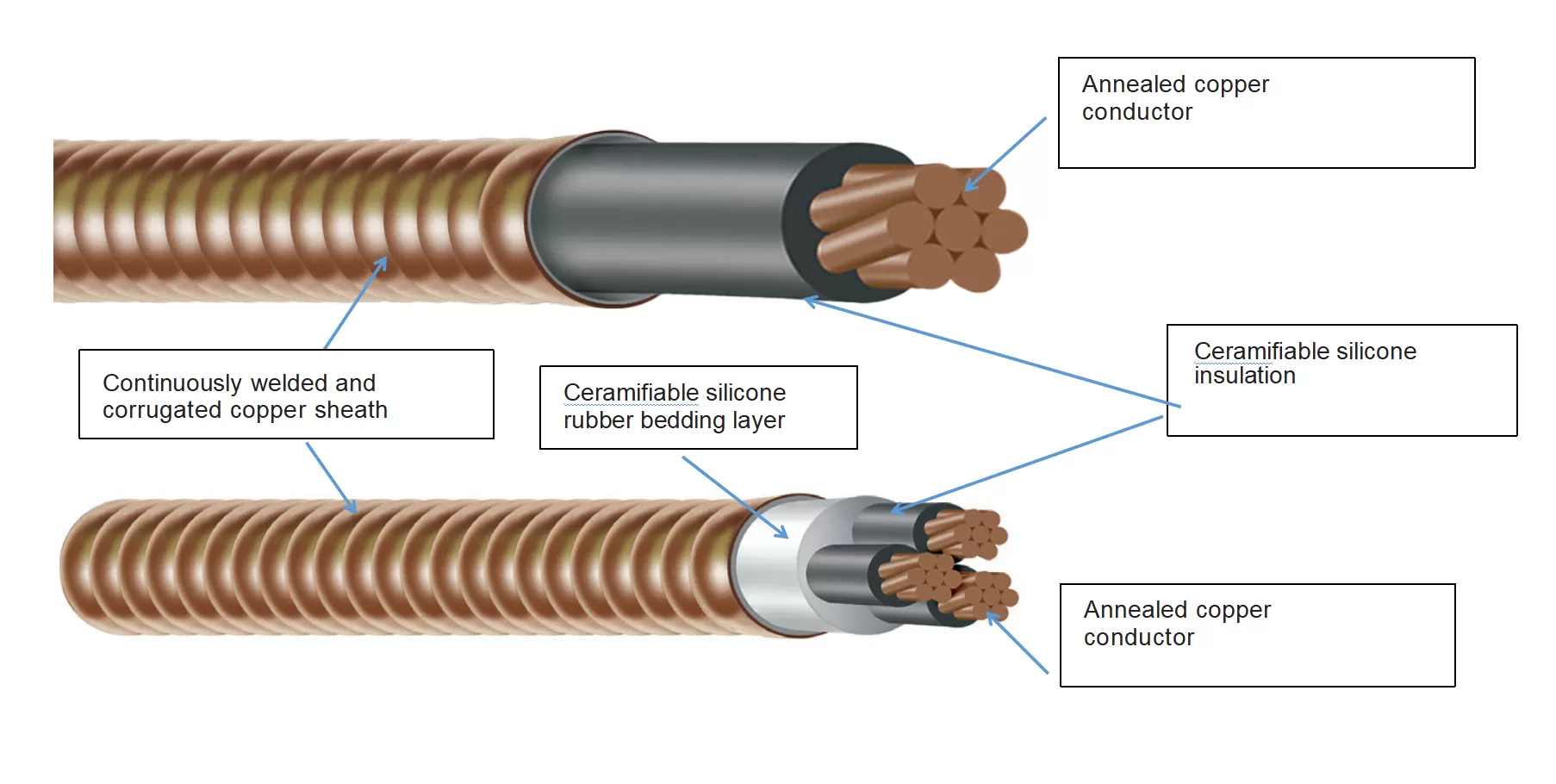

RC RA Copper 2-Hour Fire Resistive Cables Construction

Power Conductor		Nominal Core Diameter		Nominal Armor Diameter		Nominal Cable Diameter over Outer Jacket		Approximate Net Weight
Size (AWG kcmil)	No.of Conductors	In	mm	In	mm	In	mm	(Lbs/1000 ft)	kg/km
14	2	0.49	12.446	0.82	20.828	0.92	23.368	395	587.82
14	3	0.52	13.208	0.82	20.828	0.92	23.368	425	632.47
14	4	0.57	14.478	0.89	22.606	0.99	25.146	480	714.32
12	2	0.53	13.462	0.82	20.828	0.92	23.368	415	617.59
12	3	0.56	14.224	0.89	22.606	0.99	25.146	475	706.88
12	4	0.62	15.748	0.94	23.876	0.104	2.6416	575	855.69
10	2	0.58	14.732	0.89	22.606	0.99	25.146	475	706.88
10	3	0.61	15.494	0.94	23.876	1.04	26.416	542	806.58
10	4	0.67	17.018	1	25.4	1.11	28.194	635	944.98
8	3	0.72	18.288	1.04	26.416	1.15	29.21	675	1004.51
8	4	0.8	20.32	1.16	29.464	1.26	32.004	815	1212.85
6	3	0.8	20.32	1.16	29.464	1.26	32.004	840	1250.06
6	4	0.89	22.606	1.22	30.988	1.32	33.528	990	1473.28
4	3	0.91	23.114	1.24	31.496	1.34	34.036	1140	1696.51
4	4	1	25.4	1.35	34.29	1.45	36.83	1285	1912.29
3	3	0.97	24.638	1.3	33.02	1.4	35.56	1210	1800.68
3	4	1.07	27.178	1.41	35.814	1.51	38.354	1475	2195.04
2	3	1.04	26.416	1.41	35.814	1.51	38.354	1400	2083.43
2	4	1.15	29.21	1.5	38.1	1.6	40.64	1700	2529.88
1	3	1.21	30.734	1.59	40.386	1.71	43.434	1715	2552.20
1	4	1.34	34.036	1.73	43.942	1.85	46.99	2125	3162.35
1/0	1	0.66	16.764	1	25.4	1.11	28.194	815	1212.85
1/0	3	1.29	32.766	1.67	42.418	1.79	45.466	1990	2961.45
1/0	4	1.43	36.322	1.82	46.228	1.94	49.276	2485	3698.09
2/0	1	0.7	17.78	1.04	26.416	1.15	29.21	925	1376.55
2/0	3	1.39	35.306	1.8	45.72	1.92	48.768	2345	3489.74
2/0	4	1.54	39.116	1.95	49.53	2.07	52.578	2935	4367.76
3/0	1	0.75	19.05	1.08	27.432	1.18	29.972	1055	1570.01
3/0	3	1.49	37.846	1.92	48.768	2.04	51.816	2755	4099.89
3/0	4	1.68	42.672	2.12	53.848	2.25	57.15	3530	5253.22
4/0	1	0.81	20.574	1.16	29.464	1.26	32.004	1235	1837.88
4/0	3	1.62	41.148	2.04	51.816	2.16	54.864	3305	4918.38
4/0	4	1.82	46.228	2.26	57.404	2.41	61.214	4205	6257.73
250	1	0.89	22.606	1.22	30.988	1.32	33.528	1410	2098.31
250	3	1.8	45.72	2.26	57.404	2.41	61.214	3870	5759.19
250	4	2	50.8	2.46	62.484	2.63	66.802	4925	7329.21
350	1	0.99	25.146	1.35	34.29	1.45	36.83	1795	2671.25
350	3	2.02	51.308	2.48	62.992	2.63	66.802	5015	7463.14
350	4	2.25	57.15	2.71	68.834	2.86	72.644	6420	9554.01
500	1	1.13	28.702	1.48	37.592	1.6	40.64	2350	3497.19
500	3	2.3	58.42	2.82	71.628	2.97	75.438	6720	10000.46
500	4	2.6	66.04	3.13	79.502	3.3	83.82	8740	13006.55
750	1	1.34	34.036	1.73	43.942	1.85	46.99	3285	4888.62
