JBFVSP is suitable for long-term torsion,bending and high strength applications in the complex environment of industrial robots and other mechanical equipment.
Robot Cable(CE) | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
JBF | AC:0.3/0.5 | 1芯、1对2芯、2对2芯、 3对2芯、4对2芯 | 0.14、0.2、0.3、0.5、 0.75mm² | TUV2PfG2577 Class v |
JBFVSP | AC:0.3/0.5 | 3对2芯、5对2芯、8对2芯 | 0.14、0.2mm² | TUV2PfG2577 Class v |
一、Range of application:
JBF is suitable for collaborative robots,high-precision robots in the electronics industry,harsh environment robots and other small equipment,suitable for long-term torsion,bending and high-intensity movement of the internal connection line.
JBFVSP is suitable for long-term torsion,bending and high strength applications in the complex environment of industrial robots and other mechanical equipment.
二、Product feature:
It can withstand high strength bending,torsion,tensile and compression stress,and has excellent resistance to cold resistance,high temperature resistance,oil resistance,chemical resistance,with ultra-high stability to ensure the long-term fault-free operation of the robot.

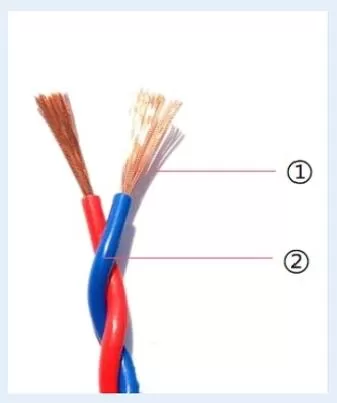

①:The sixth class of conductor has no oxygen of fine copper wire;
②:Special fluorine-resin insulation;
