It is suitable for plain,mountain,non-building and other areas,and can transmit power over a long distance.
Aerial Bundled Cables Medium Voltage | ||||
Cable type | Voltage class | Number of cores | Nominal cross-sectional area of conductor | Executive standard |
JKYJ | AC:10kV | 1、3 | 10~400mm2 | GB/T12527-2008 |
JKLYJ | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKTRYJ | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLHYJ | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKY | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLY | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKTRY | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLHY | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLY/Q | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLHY/Q | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLYJ/Q | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLHYJ/Q | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLYJ/B | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
JKLHYJ/B | AC:10kV | 1、3 | 10~400mm² | GB/T12527-2008 |
一、Range of application:
It is suitable for plain,mountain,non-building and other areas,and can transmit power over a long distance.
二、Product feature:
The main characteristics are weather-aging resistance,small line loss,simple construction,short construction period,can effectively prevent electric theft,leakage and other phenomena,and has good safety

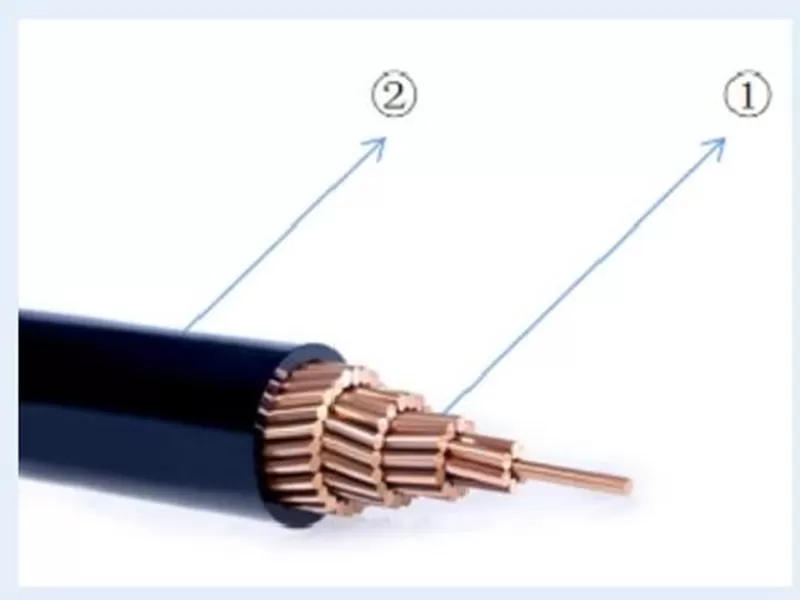

①:Multiple stranded copper conductor;
②:Crosslinked polyethylene insulation
