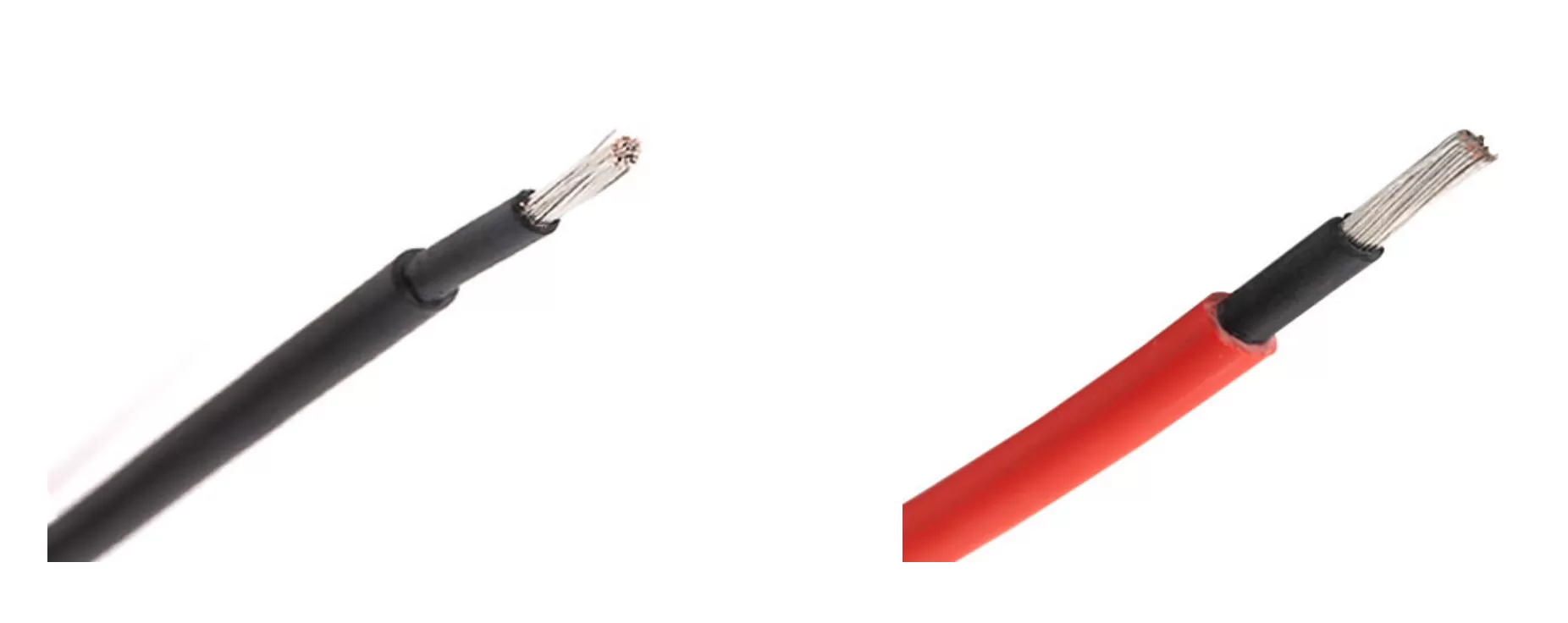

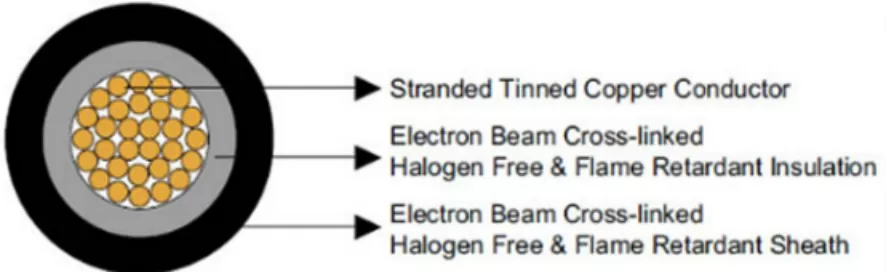

Stranded Tinned Copper Conductor Flame Retardant Insulation Flame Retardant Sheath Cable
Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems.
Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7,
EN 60068-2-78, EN 50395
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2,
IEC/EN 61034-1/2, EN 50267-2-2
Ozone and UV Resistant to EN 60811-403, EN 50396,
EN ISO 4892-1/3,
Water Resistant to AD8
SIZE | Stranding Nos | Conductor Diameter | Insulation Thickness | Sheath Thickness | O.D. | Net Weight |
Nos*mm2 | mm | mm | mm | mm | kg/km | |
1*1.5 | 30/0.25 | 1.58 | 1.14 | 0.82 | 5.4 | 52 |
1*2.5 | 50/0.25 | 2.04 | 1.14 | 0.82 | 5.8 | 67 |
1*4.0 | 56/0.3 | 2.59 | 1.14 | 0.82 | 6.4 | 87 |
1*6.0 | 84/0.3 | 3.17 | 1.14 | 0.82 | 7.0 | 113 |
1*10 | 78/0.4 | 4.07 | 1.52 | 0.82 | 8.6 | 178 |
1*16 | 128/0.4 | 5.22 | 1.52 | 0.82 | 9.8 | 254 |
1*25 | 199/0.4 | 6.51 | 1.52 | 0.82 | 11.1 | 363 |
1*35 | 279/0.4 | 7.71 | 1.52 | 0.82 | 12.3 | 473 |
