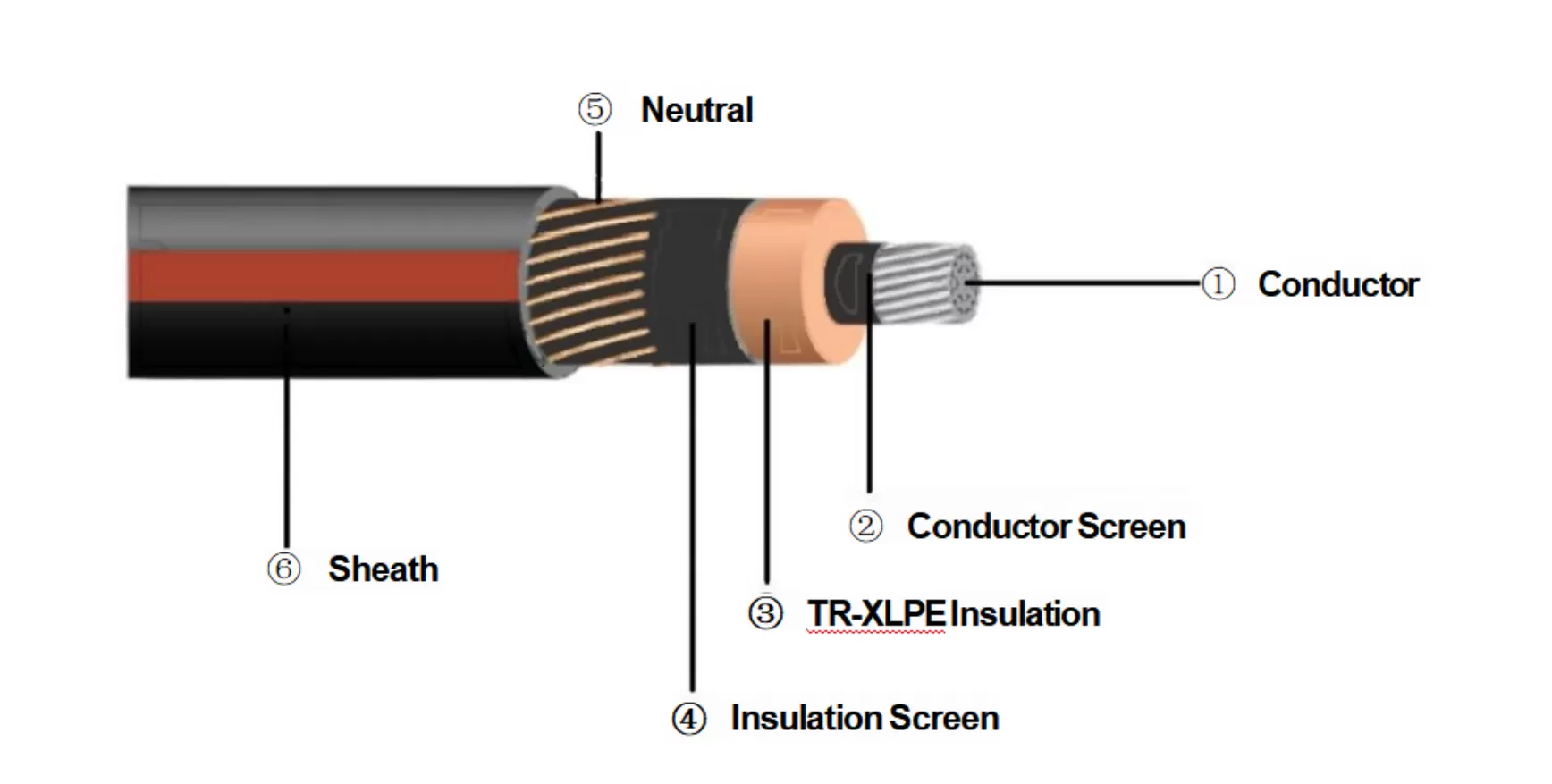

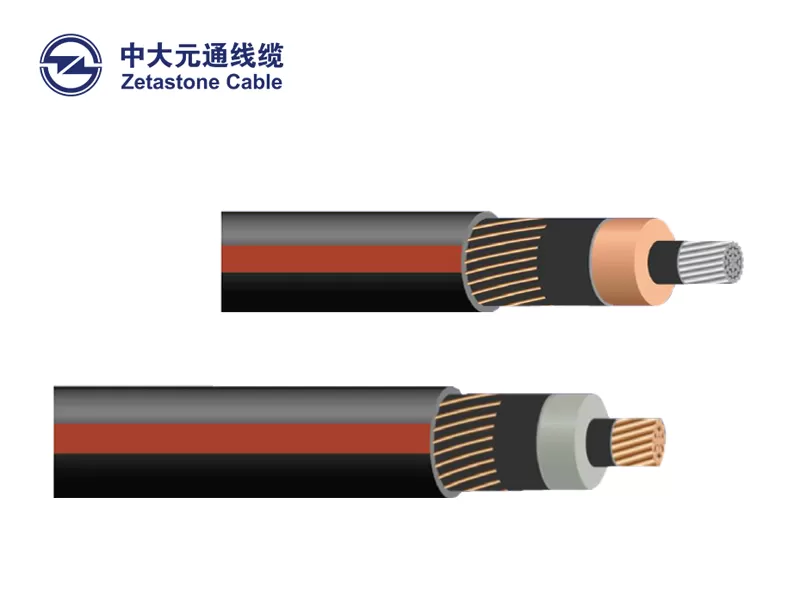

Rated Voltage：5KV 8KV 15KV 25KV 28KV 35KV 46KV
Conductor：Copper,Aluminum,Aluminum Alloy 8000 series
Insulation：EPR(UL)
Screen：Copper Tape Shield
Sheath：XLPE(UL)/PVC
Predominantly used for primary underground distribution in conduit systems suitable for use in wet or drylocations, direct burial, underground duct, and where exposed to sunlight. To be used at 35,000 volts or less andat conductor temperatures not to exceed 90°C(MV90) or 150°C(MV-105) for normal operation.
UL1072 Medium-Voltage Power Cables
ICEA S-94-649 Concentric Neutral Cables Rated 5-46kv
AEIC CS8 Specification for Extruded Dielectric,Shielded Power Cables Rated 5 through 46 kv.
CSA C68.5-Primary shielded and concentric neutral cable for distribution utilities.
Voltage:5kv, 8kv,15kv,25kv, 28kv, 35kv, 46kv
insulation Leve:100%133%173%
Conductor: Copper, Aluminum, Aluminum Alloy 8000 Series
Insulation material: EPR(UL)
Copper Concentric Copper Neutral: full Neutral, 1/3 Neutral, 1/6 Neutral, 1/8 Neutral, 1/12 Neutral
Screen: copper Tape Shield
Jacket: XLPE(UL) or PVC
URD Power Cable-AL TR-XLPE 15KV 100%1/3 Concentric Neutral XLPE Range and Dimension
Size | Conductor | Insulation | Diameter | Strands | Strands | Jacket | Jacket | Net |
AWG/Kcmil | mm | mm | mm | mm | mm | mm | kg/km | |
2 | 7 | 4.45 | 17 | 6 | 1.29 | 1.4 | 24.2 | 602 |
1/00 | 9 | 4.45 | 18.9 | 6 | 1.63 | 1.4 | 26.8 | 782.2 |
2/00 | 10.1 | 4.45 | 20 | 11 | 1.29 | 1.4 | 27.2 | 839.8 |
3/00 | 11.4 | 4.45 | 21.3 | 14 | 1.29 | 1.4 | 28.5 | 956.9 |
4/00 | 12.8 | 4.45 | 22.7 | 11 | 1.63 | 1.4 | 30.6 | 1127.1 |
250 | 13.9 | 4.45 | 23.8 | 13 | 1.63 | 1.4 | 31.7 | 1256 |
350 | 16.5 | 4.45 | 26.4 | 18 | 1.63 | 1.4 | 34.8 | 1591.2 |
500 | 19.6 | 4.45 | 29.5 | 16 | 2.05 | 1.4 | 38.8 | 2069.3 |
750 | 24.1 | 4.45 | 34.4 | 15 | 2.59 | 2.03 | 46 | 2994.6 |
1000 | 27.8 | 4.45 | 38.1 | 20 | 2.59 | 2.03 | 49.7 | 3699.1 |
1250 | 31.2 | 5.59 | 43.9 | 20 | 2.91 | 2.03 | 56.9 | 4748.8 |
1500 | 34.1 | 5.59 | 47.3 | 24 | 2.91 | 2.03 | 60.2 | 5489.6 |
URD Power Cable-AL TR-XLPE 15KV 100%1/3 Concentric Neutral XLPE Range and Dimension
Size | Conductor | Insulation | Diameter | Strands | Strands | Jacket | Jacket | Net |
AWG/Kcmil | mm | mm | mm | mm | mm | mm | kg/km | |
2 | 7 | 4.45 | 17 | 6 | 1.29 | 1.4 | 26.5 | 692.1 |
1/00 | 9 | 4.45 | 18.9 | 6 | 1.63 | 1.4 | 29.1 | 881.4 |
2/00 | 10.1 | 4.45 | 20 | 11 | 1.29 | 1.4 | 29.5 | 940.3 |
3/00 | 11.4 | 4.45 | 21.3 | 14 | 1.29 | 1.4 | 30.8 | 1061.8 |
4/00 | 12.8 | 4.45 | 22.7 | 11 | 1.63 | 1.4 | 32.9 | 1239.2 |
250 | 13.9 | 4.45 | 23.8 | 13 | 1.63 | 1.4 | 34.5 | 1405 |
350 | 16.5 | 4.45 | 26.4 | 18 | 1.63 | 1.4 | 37.1 | 1718.2 |
500 | 19.6 | 4.45 | 29.5 | 16 | 2.05 | 1.4 | 41 | 2209.8 |
750 | 24.1 | 4.45 | 34.4 | 15 | 2.59 | 2.03 | 48.2 | 3160 |
1000 | 27.8 | 4.45 | 38.1 | 20 | 2.59 | 2.03 | 52.7 | 3953.9 |
1250 | 31.2 | 5.59 | 43.9 | 20 | 2.91 | 2.03 | 56.9 | 4748.8 |
1500 | 34.1 | 5.59 | 47.3 | 24 | 2.91 | 2.03 | 60.2 | 5489.6 |
