UL4703
600/1000/2000V Aluminum & Copper Solar PV Cable

PV wire is rated 600, 1000 or 2000 V, and is suitable for ac and dc systems. This wire is rated 90°C, 105°C, 125°C or 150°C dry and 90°C wet. PV wire employs 12 AWG - 2000 kcmil stranded aluminum or copper-clad aluminum, or 18 AWG - 2000 kcmil stranded copper, tined copper conductors.

Get Price now 

UL4703 600/1000/2000V Aluminum & Copper Solar PV Cable Applications

This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in balance of system (BOS) integration.

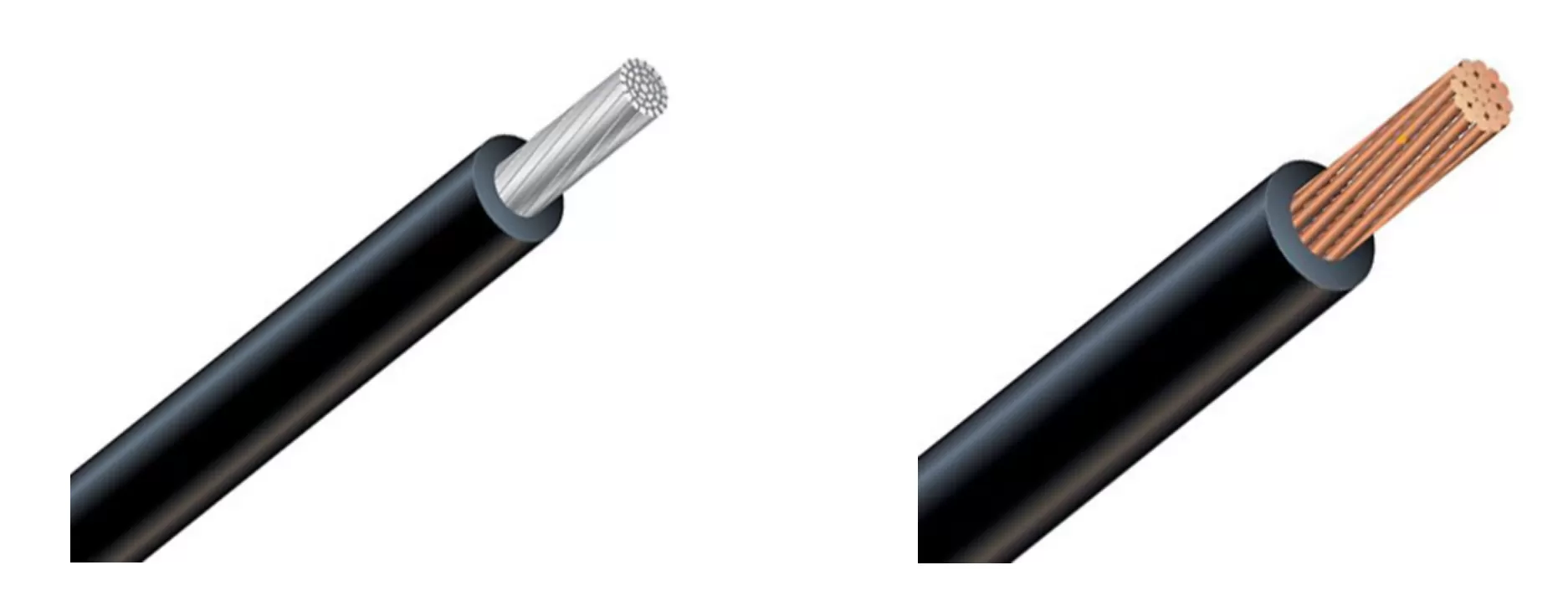

UL4703 600/1000/2000V Aluminum & Copper Solar PV Cable

UL4703 600/1000/2000V Aluminum & Copper Solar PV Cable Specifications

PV (Photovoltaic) with UL certificate standard
UL 4703 for TYPE PV
UL 44 for TYPE RHW-2
UL 854 for TYPE USE-2

Aluminum AA-8000 1000/2000v Data

Size	Diameter of Conductor	Strands	Insulation Thickness	O.D.	Net Weight
AWG or Kcmil	mm	Nos	mm	mm	kg/km
12	2.16	7	1.9	6	46
10	2.72	7	1.9	6.5	56
8	3.4	7	2.15	7.7	80
6	4.29	7	2.15	8.6	102
4	5.41	7	2.15	9.7	135
3	6.02	7	2.15	10.3	156
2	6.81	7	2.15	11.1	183
1	7.59	18	2.66	12.9	244
1/0	8.53	18	2.66	13.9	286
2/0	9.55	18	2.66	14.9	337
3/0	10.74	18	2.66	16.1	400
4/0	12.07	18	2.66	17.4	477
250	13.21	35	3.04	19.3	579
300	14.48	35	3.04	20.6	665
350	15.65	35	3.04	21.7	750
400	16.74	35	3.04	22.8	836
450	17.78	35	3.04	23.9	914
500	18.69	35	3.04	24.8	1028
550	19.69	58	3.43	26.6	1133
600	20.65	58	3.43	27.5	1217
650	21.46	58	3.43	28.3	1298
700	22.28	58	3.43	29.1	1382
750	23.06	58	3.43	29.9	1463
800	23.83	58	3.43	30.7	1543
900	25.37	58	3.43	32.2	1707
1000	26.92	58	3.43	33.8	1871

Aluminum AA-8000 600V Data

Size	Diameter of Conductor	Strands	Insulation Thickness	O.D.	Net Weight
AWG or Kcmil	mm	Nos	mm	mm	kg/km
12	2.16	7	1.52	5.2	36
10	2.72	7	1.52	5.76	45
8	3.4	7	1.9	7.2	71
6	4.29	7	1.9	8.09	92
4	5.41	7	1.9	9.21	124
3	6.02	7	1.9	9.82	145
2	6.81	7	1.9	10.61	170
1	7.59	18	2.41	12.41	230
1/0	8.53	18	2.41	13.35	271
2/0	9.55	18	2.41	14.37	320
3/0	10.74	18	2.41	15.56	382
4/0	12.07	18	2.41	16.89	457
250	13.21	35	2.79	18.79	557
300	14.48	35	2.79	20.06	642
350	15.65	35	2.79	21.23	725
400	16.74	35	2.79	22.32	810
450	17.78	35	2.79	23.36	887
500	18.69	35	2.79	24.27	999
550	19.69	58	3.18	26.05	1103
600	20.65	58	3.18	27.01	1185
650	21.46	58	3.18	27.82	1265
700	22.28	58	3.18	28.64	1348
750	23.06	58	3.18	29.42	1428
800	23.83	58	3.18	30.19	1508
900	25.37	58	3.18	31.73	1670
1000	26.92	58	3.18	33.28	1832

Copper 1000/2000v Data

Size	Diameter of Conductor	Strands	Insulation Thickness	O.D.	Net Weight
AWG or Kcmil	mm	Nos	mm	mm	kg/km
12	2.16	7	1.9	6	66
10	2.72	7	1.9	6.5	88
8	3.4	7	2.15	7.7	130
6	4.29	7	2.15	8.6	183
4	5.41	7	2.15	9.7	265
3	6.02	7	2.15	10.3	321
2	6.81	7	2.15	11.1	391
1	7.59	18	2.66	12.9	506
1/0	8.53	18	2.66	13.9	617
2/0	9.55	18	2.66	14.9	754
3/0	10.74	18	2.66	16.1	927
4/0	12.07	18	2.66	17.4	1140
250	13.21	35	3.04	19.3	1366
300	14.48	35	3.04	20.6	1608
350	15.65	35	3.04	21.7	1849
400	16.74	35	3.04	22.8	2097
450	17.78	35	3.04	23.9	2318
500	18.69	35	3.04	24.8	2663
550	19.69	58	3.43	26.6	2867
600	20.65	58	3.43	27.5	3106
650	21.46	58	3.43	28.3	3343
700	22.28	58	3.43	29.1	3589
750	23.06	58	3.43	29.9	3826
800	23.83	58	3.43	30.7	4063
900	25.37	58	3.43	32.2	4545
1000	26.92	58	3.43	33.8	5027

Copper 600V Data

Size	Diameter of Conductor	Strands	Insulation Thickness	O.D.	Net Weight
AWG or Kcmil	mm	Nos	mm	mm	kg/km
12	2.16	7	1.52	5.2	61
10	2.72	7	1.52	5.76	95
8	3.4	7	1.9	7.2	131
6	4.29	7	1.9	8.09	186
4	5.41	7	1.9	9.21	262
3	6.02	7	1.9	9.82	319
2	6.81	7	1.9	10.61	416
1	7.59	18	2.41	12.41	506
1/0	8.53	18	2.41	13.35	617
2/0	9.55	18	2.41	14.37	756
3/0	10.74	18	2.41	15.56	929
4/0	12.07	18	2.41	16.89	1172
250	13.21	35	2.79	18.79	1369
300	14.48	35	2.79	20.06	1609
350	15.65	35	2.79	21.23	1848
400	16.74	35	2.79	22.32	2095
450	17.78	35	2.79	23.36	2314
500	18.69	35	2.79	24.27	2706
550	19.69	58	3.18	26.05	2864
600	20.65	58	3.18	27.01	3101
650	21.46	58	3.18	27.82	3338
700	22.28	58	3.18	28.64	3583
750	23.06	58	3.18	29.42	3819
800	23.83	58	3.18	30.19	4067
900	25.37	58	3.18	31.73	4548
1000	26.92	58	3.18	33.28	4557

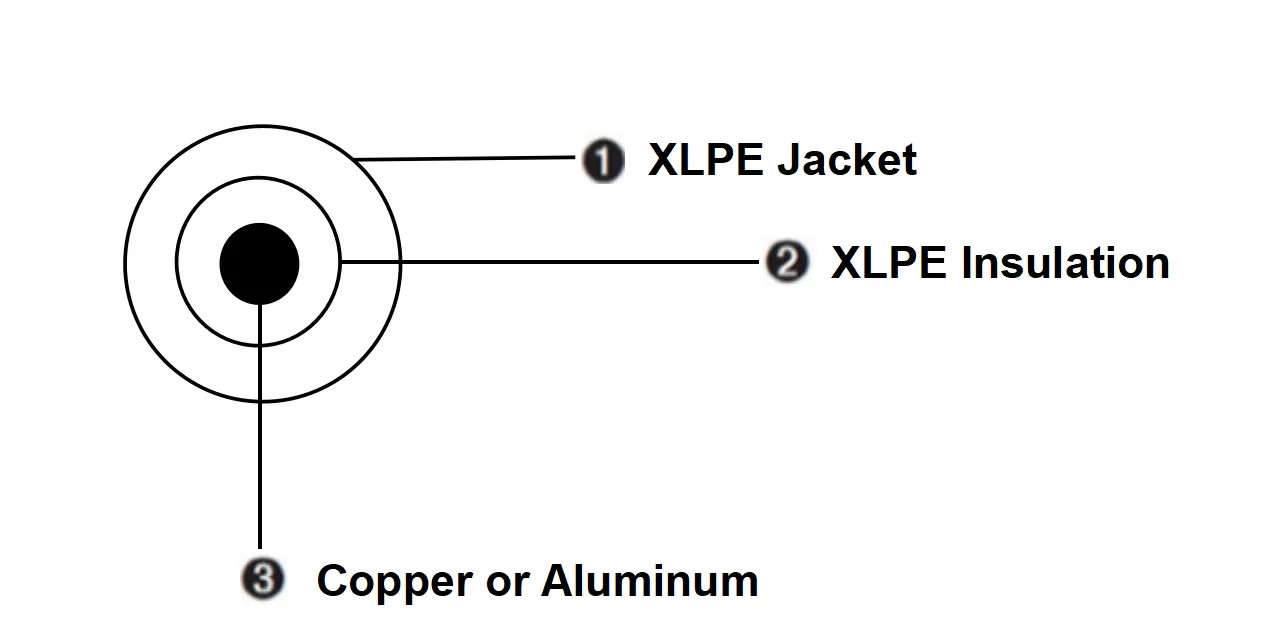

UL4703 600/1000/2000V Aluminum & Copper Solar PV Cable Construction
