-Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
-Maximum permitted operating temperature of conductor is 60°C. The long-term working temperature of conductor should be no longer than 65°C
-Permitted lowest working temperature is -35°C.
-Cables can be used at places contaminated by mineral oil and fuel oil.

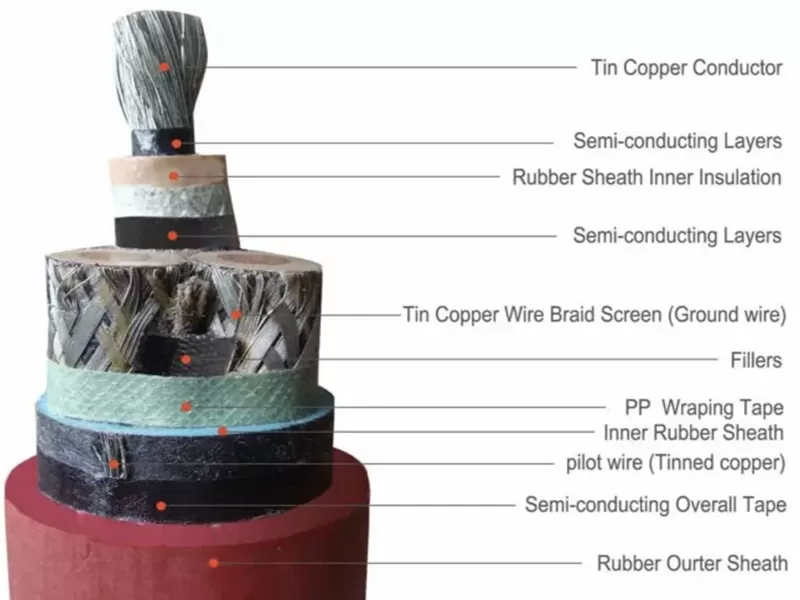

Conductor: Flexible Class 5 Copper Conductor
Insualtion: EPR
Screen: Copper Wire Brain Screen / Tinned Copper Wire Screen
Sheath: CPE
products parameter:
Cross-Sectional | Number diameter of core | Overall Diameter | Max.D.C resistance | Approx Weight | |||
min | max | ||||||
3x4 | 56/0.3 | 12.7 | 16.2 | 4.95 | 8.21 | 305.6 | 325.2 |
3x6 | 84/0.3 | 14.1 | 18.0 | 3.3 | 3.39 | 822.3 | 895.6 |
3x10 | 84/0.4 | 19.1 | 24.2 | 1.91 | 1.95 | 452.5 | 497.7 |
3x25 | 196/0.4 | 26.1 | 33.0 | 0.78 | 0.795 | 1514.3 | 1725.4 |
3x35 | 276/0.4 | 29.3 | 37.1 | 0.554 | 0.565 | 2031.2 | 2089.7 |
3x50 | 396/0.4 | 34.1 | 42.9 | 0.386 | 0.393 | 2880.3 | 3057.8 |
3x70 | 360/0.5 | 38.4 | 48.3 | 0.272 | 0.277 | 3879.3 | 4109.2 |
3x95 | 475/0.5 | 43.3 | 54.0 | 0.206 | 0.210 | 4974.5 | 5250.8 |
3x120 | 608/0.5 | 47.3 | 60.0 | 0.161 | 0.164 | 5933.3 | 6253.3 |
3x150 | 28/0.15 | 52.0 | 66.0 | 0.129 | 0.132 | 7443.4 | 77740.9 |
-This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
-Connection cables for the power supply of shuttle cars and equipment in various mines
-Power connection cables for mobile or semi-mobile automation equipment, control cabinets, mechanical engineering, etc. in explosion-proof areas
