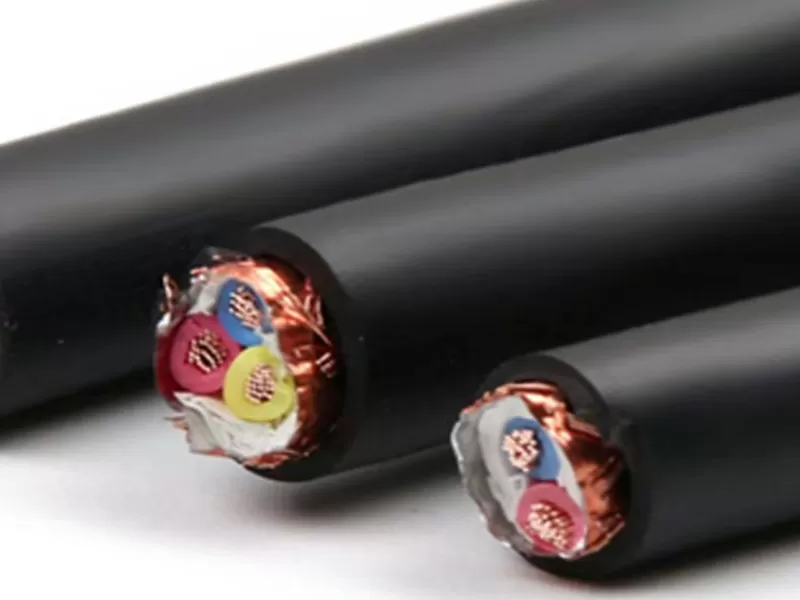

Copper Core PVC Insulated And Sheathed Braided Shielded Flexible Cable requires anti-interference line connection, efficient and safe transmission data cables, and anti-external signal interference effects.
(1)Temperature Rating :-15°C up to 70°C
(2)Voltage Rating:300V/500V
(3)Min Inner bending radius:10.0mm±0.2mm
(4)Behaviour in free :Flame retardant to IEC 60332-1
(1) Core conductor: oxygen free copper
(2) Sheathe: PVC
(3)Insulation：PVC
(3) Screen:copper wire braiding
(4) Products parameter：
oltage grade (V) | Cross-sectional area (mm2) | Conductor combination (mm) | Insulation thickness (mm) | The largest diameter (mm) |
300/500V | 2x0.5 | 28/0.15 | 0.6 | 6.2 |
3x0.5 | 28/0.15 | 0.6 | 6.8 | |
4x0.5 | 28/0.15 | 0.6 | 7.2 | |
5x0.5 | 28/0.15 | 0.6 | 8.0 | |
6x0.5 | 28/0.15 | 0.6 | 8.6 | |
2x0.75 | 42/0.15 | 0.6 | 6.4 | |
3x0.75 | 42/0.15 | 0.6 | 7.0 | |
4x0.75 | 42/0.15 | 0.6 | 7.8 | |
5x0.75 | 42/0.15 | 0.6 | 8.6 | |
6x0.75 | 42/0.15 | 0.6 | 10.5 | |
2x1.0 | 32/0.2 | 0.6 | 7.2 | |
3x1.0 | 32/0.2 | 0.6 | 8.0 | |
300/500V | 4x1.0 | 32/0.2 | 0.6 | 9.0 |
5x1.0 | 32/0.2 | 0.6 | 10 | |
6x1.0 | 32/0.2 | 0.6 | 11 | |
2x1.5 | 48/0.2 | 0.7 | 8.5 | |
300/500V | 3x1.5 | 48/0.2 | 0.7 | 9.3 |
4x1.5 | 48/0.2 | 0.7 | 10.2 | |
5x1.5 | 48/0.2 | 0.7 | 10.8 | |
6x1.5 | 48/0.2 | 0.7 | 12.3 |
Cables are used in places where interference is needed to resist external signal interference, usually used in communications, audio, broadcast, sound systems, anti-theft alarm systems, intelligent automation systems, automatic meter reading systems, fire protection systems, etc., which require anti-interference line connection, efficient and safe transmission data cables, and anti-external signal interference effects.
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2：how about your quality?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,please consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
