Teck90 cable is used extensively by the pulp and paper, chemical, mining, petrochemical and manufacturing industries in a broad range of applications, especially where cable may be subjected to mechanical damage and corrosive chemicals.
Commercial applications for Teck90 cable include apartment buildings and commercial complexes. Teck90 cable is also an economical alternative as the need for conduits or ducts and pull boxes is eliminated.
Teck90 cable is approved for use; in wet and dry locations, indoor and outdoor, in exposed and concealed wiring, in ventilated, non-ventilated and ladder type cable trays, for direct earth burial and for service entrance installations, above and below ground.
Teck90 cable combination of interlocking flexible armor with two layers of PVC jacket provide a rugged, compact and flexible cable that is resistant to corrosion, water and mechanical abuse. It is designed for use in wet or dry locations with a maximum conductor temperature of 90˚C and a low temperature rating of -40°C.
CSA FT1 & FT4
CSA C22.2 No. 131 for Teck90 cables rated up to and including 5kV
CSA C68.10 for shielded Teck90 cables rated 5kV and above (C68.10 pending)
CSA C22.2 No. 0.3 Clause 4.11.4 FT4 flame test
Class 1 Group A, B, C, D. Division 1 & 2
Class II Group E, F, G. Division 1 & 2
ICEA S-66-524 / NEMA WC7 for Teck90 cables rated above 5kV
IEEE 383 &1202 (70,000 BTU/hr) flame test
ICEA T-29-520 (210,000 BTU/hr) Vertical Cable Tray Flame Test
ICEA T-30-520 (70,000 BTU/hr) Vertical Cable Tray Flame Test
Power conductor | Number | Bonding | Insulation | Jacket | Armor | Sheath | Cable | |
cores | size | Nos. | size | mm | mm | mm | mm | mm |
2 | 14 | 7 | 14 | 0.76 | 1.14 | 14.1 | 1 | 16 |
2 | 12 | 7 | 14 | 0.76 | 1.14 | 15.1 | 1 | 17 |
2 | 10 | 7 | 12 | 0.76 | 1.14 | 16.3 | 1 | 18 |
2 | 8 | 7 | 10 | 1.14 | 1.52 | 19.5 | 1 | 22 |
2 | 6 | 7 | 8 | 1.14 | 1.52 | 21.3 | 1 | 23 |
2 | 4 | 7 | 8 | 1.14 | 1.52 | 23.5 | 1 | 26 |
2 | 3 | 7 | 6 | 1.14 | 1.52 | 24.7 | 1 | 27 |
2 | 2 | 7 | 6 | 1.14 | 2.03 | 27.3 | 1 | 29 |
2 | 1 | 19 | 6 | 1.4 | 2.03 | 29.9 | 1 | 32 |
2 | 1/0 | 19 | 6 | 1.4 | 2.03 | 31.8 | 1 | 34 |
2 | 2/0 | 19 | 6 | 1.4 | 2.03 | 33.9 | 1 | 36 |
2 | 3/0 | 19 | 4 | 1.4 | 2.03 | 36.2 | 1 | 38 |
2 | 4/0 | 19 | 4 | 1.4 | 2.03 | 38.9 | 1.2 | 41 |
2 | 250 | 37 | 4 | 1.65 | 2.03 | 42.2 | 1.2 | 45 |
2 | 300 | 37 | 4 | 1.65 | 2.03 | 44.7 | 1.2 | 47 |
2 | 350 | 37 | 3 | 1.65 | 2.79 | 48.6 | 1.2 | 51 |
2 | 400 | 37 | 3 | 1.65 | 2.79 | 50.8 | 1.2 | 53 |
2 | 450 | 37 | 3 | 1.65 | 2.79 | 52.8 | 1.2 | 55 |
2 | 500 | 37 | 3 | 1.65 | 2.79 | 54.7 | 1.2 | 57 |
2 | 550 | 37 | 3 | 2.03 | 2.79 | 58.2 | 1.5 | 61 |
2 | 600 | 61 | 2 | 2.03 | 2.79 | 60.1 | 1.5 | 63 |
2 | 650 | 61 | 2 | 2.03 | 2.79 | 61.7 | 1.5 | 65 |
2 | 700 | 61 | 2 | 2.03 | 2.79 | 53.4 | 1.5 | 66 |
2 | 750 | 61 | 2 | 2.03 | 2.79 | 64.9 | 1.5 | 68 |
3 | 14 | 7 | 14 | 0.76 | 1.14 | 14.7 | 1 | 17 |
3 | 12 | 7 | 14 | 0.76 | 1.14 | 15.7 | 1 | 18 |
3 | 10 | 7 | 12 | 0.76 | 1.14 | 17 | 1 | 19 |
3 | 8 | 7 | 10 | 1.14 | 1.52 | 20.4 | 1 | 22 |
3 | 6 | 7 | 8 | 1.14 | 1.52 | 22.3 | 1 | 24 |
3 | 4 | 7 | 8 | 1.14 | 1.52 | 24.8 | 1 | 27 |
3 | 3 | 7 | 6 | 1.14 | 2.03 | 27.1 | 1 | 29 |
3 | 2 | 7 | 6 | 1.14 | 2.03 | 28.8 | 1 | 31 |
3 | 1 | 19 | 6 | 1.4 | 2.03 | 31.6 | 1 | 34 |
3 | 1/0 | 19 | 6 | 1.4 | 2.03 | 33.6 | 1 | 36 |
3 | 2/0 | 19 | 6 | 1.4 | 2.03 | 35.8 | 1 | 38 |
3 | 3/0 | 19 | 4 | 1.4 | 2.03 | 38.4 | 1.2 | 41 |
3 | 4/0 | 19 | 4 | 1.4 | 2.03 | 41.3 | 1.2 | 44 |
3 | 250 | 37 | 4 | 1.65 | 2.03 | 44.8 | 1.2 | 47 |
3 | 300 | 37 | 4 | 1.65 | 2.79 | 49.1 | 1.2 | 51 |
3 | 350 | 37 | 3 | 1.65 | 2.79 | 51.6 | 1.2 | 54 |
3 | 400 | 37 | 3 | 1.65 | 2.79 | 54 | 1.2 | 56 |
3 | 450 | 37 | 3 | 1.65 | 2.79 | 56.2 | 1.2 | 59 |
3 | 500 | 37 | 3 | 1.65 | 2.79 | 58.2 | 1.5 | 61 |
3 | 550 | 37 | 3 | 2.03 | 2.79 | 62 | 1.5 | 65 |
3 | 600 | 61 | 2 | 2.03 | 2.79 | 64.1 | 1.5 | 67 |
3 | 650 | 61 | 2 | 2.03 | 2.79 | 65.8 | 1.5 | 69 |
3 | 700 | 61 | 2 | 2.03 | 2.79 | 67.6 | 1.5 | 71 |
3 | 750 | 61 | 2 | 2.03 | 2.79 | 69.3 | 1.5 | 72 |
Power | Numbers | Bonding | Insulation | Jacket | Sheath | Cable | |
cores | size | Nos. | size | mm | mm | mm | mm |
2 | 12 | 7 | 14 | 1.14 | 1.14 | 1 | 19.2 |
3 | 12 | 7 | 14 | 1.14 | 1.14 | 1 | 19.9 |
2 | 10 | 7 | 12 | 1.14 | 1.14 | 1 | 20.4 |
3 | 10 | 7 | 12 | 1.14 | 1.52 | 1 | 22 |
2 | 8 | 7 | 10 | 1.14 | 1.52 | 1 | 22.7 |
3 | 8 | 7 | 10 | 1.14 | 1.52 | 1 | 23.7 |
2 | 6 | 7 | 8 | 1.52 | 1.52 | 1 | 26.1 |
3 | 6 | 7 | 8 | 1.52 | 1.52 | 1 | 28.4 |
2 | 4 | 7 | 8 | 1.52 | 2.03 | 1 | 30.6 |
3 | 4 | 7 | 8 | 1.52 | 2.03 | 1 | 32 |
2 | 3 | 7 | 6 | 1.52 | 2.03 | 1 | 32 |
3 | 3 | 7 | 6 | 1.52 | 2.03 | 1 | 33.5 |
2 | 2 | 7 | 6 | 1.52 | 2.03 | 1 | 33.6 |
3 | 2 | 7 | 6 | 1.52 | 2.03 | 1 | 35.3 |
2 | 1 | 19 | 6 | 2.03 | 2.03 | 1 | 37.6 |
3 | 1 | 19 | 6 | 2.03 | 2.03 | 1 | 39.6 |
2 | 1/0 | 19 | 6 | 2.03 | 2.03 | 1 | 38.8 |
3 | 1/0 | 19 | 6 | 2.03 | 2.03 | 1.2 | 41.4 |
2 | 2/0 | 19 | 6 | 2.03 | 2.03 | 1.2 | 41.5 |
3 | 2/0 | 19 | 6 | 2.03 | 2.03 | 1.2 | 43.8 |
2 | 3/0 | 19 | 4 | 2.03 | 2.03 | 1.2 | 43.9 |
3 | 3/0 | 19 | 4 | 2.03 | 2.03 | 1.2 | 46.4 |
2 | 4/0 | 19 | 4 | 2.03 | 2.03 | 1.2 | 46.7 |
3 | 4/0 | 19 | 4 | 2.03 | 2.03 | 1.2 | 50.4 |
2 | 250 | 37 | 4 | 2.28 | 2.03 | 1.2 | 51.1 |
3 | 250 | 37 | 4 | 2.28 | 2.79 | 1.2 | 55.6 |
2 | 300 | 37 | 4 | 2.28 | 2.79 | 1.2 | 55.3 |
3 | 300 | 37 | 4 | 2.28 | 2.79 | 1.2 | 58.4 |
2 | 350 | 37 | 3 | 2.28 | 2.79 | 1.2 | 57.7 |
2 | 400 | 37 | 3 | 2.28 | 2.79 | 1.2 | 60.1 |
3 | 400 | 37 | 3 | 2.28 | 2.79 | 1.5 | 64.3 |
2 | 500 | 37 | 3 | 2.28 | 2.79 | 1.5 | 65.2 |
3 | 500 | 37 | 3 | 2.28 | 2.79 | 1.5 | 69.1 |

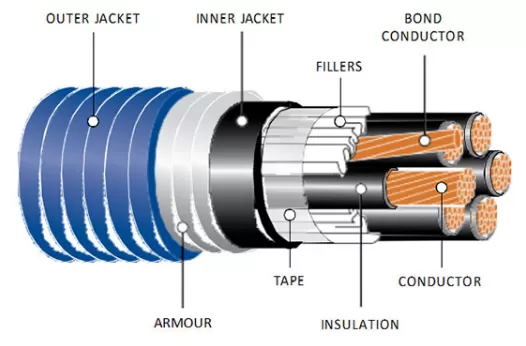

Conductor: Class B stranded copper, compressed or compact, in accordance with ASTM B3 and B8.
Insulation: Cross-Linked Polyethylene (XLPE), Colour Code: 2/C black, white; 3/C red, black, blue; 4/C red, black, blue, white; For 5/C cables or more, the insulation is black and numbered
Grounding Conductors: Uninsulated Class B stranded grounding conductor
Inner Jacket: Black Polyvinyl Chloride (PVC)
Armor: Aluminum Interlocked Armour (AIA)
Overall Jacket: Black PVC (optional colors available)
