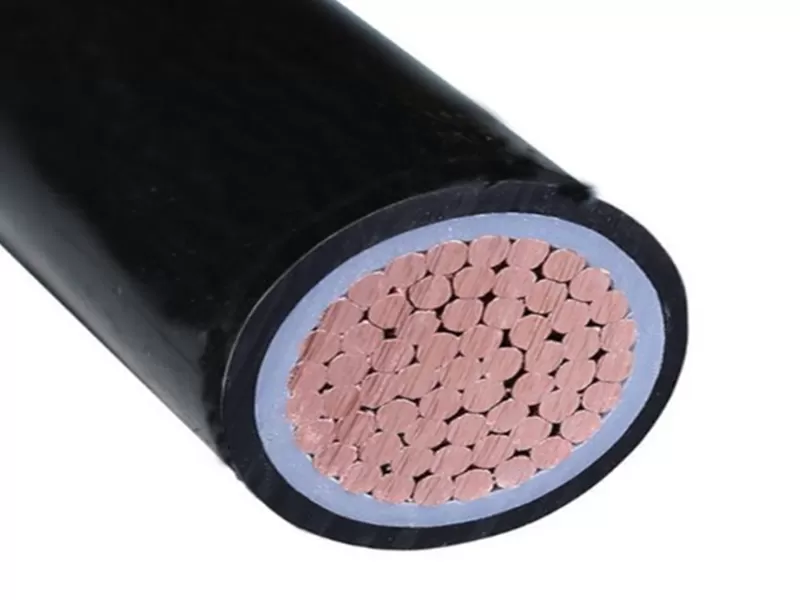

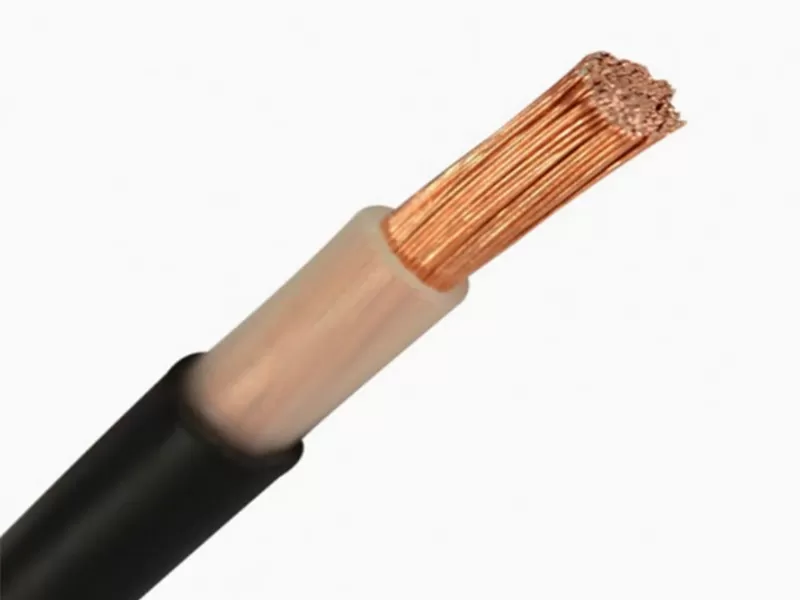

Low Voltage YJV Copper Conductor XLPE Insulation LOSH XLPE Sheath mica tape Single Core Power Cable
(1)Voltage Rating Uo/U 0.6/1kV
(2)Temperature Rating During installation -10°C to +50ºC
(3)Fixed installation: -25°C to +90°C
(4)Minimum Bending Radius:6 x overall diameter
(1) Conductor: Stranded Copper, Class 2
(2) Insulation: Cross-Linked Polyethylene (XLPE)
(3) Sheath:LOSH XLPE insulation
(4) Tape:mica tape
(5) Products parameter:
Nominal cross-sectional area | Insulation thickness | Sheath thickness | Approx.overall | Approx. weight |
mm2 | mm | mm | mm | |
1x1.5 | 0.7 | 1.4 | 5.9 | 43.2 |
1x2.5 | 0.7 | 1.4 | 6.3 | 54.6 |
1x4 | 0.7 | 1.4 | 6.9 | 71.7 |
1x6 | 0.7 | 1.4 | 7.5 | 92.9 |
1x10 | 0.7 | 1.4 | 8.4 | 133.6 |
1x16 | 0.7 | 1.4 | 9.4 | 194.4 |
1x25 | 0.9 | 1.4 | 10.7 | 286 |
1x35 | 0.9 | 1.4 | 11.7 | 379 |
1x50 | 1 | 1.4 | 13 | 492.9 |
1x70 | 1.1 | 1.4 | 14.9 | 692.1 |
1x95 | 1.1 | 1.5 | 16.9 | 950.3 |
1x120 | 1.2 | 1.5 | 18.6 | 1175 |
1x150 | 1.4 | 1.6 | 20.6 | 1455.4 |
1x185 | 1.6 | 1.6 | 22.6 | 1816.4 |
1x240 | 1.7 | 1.7 | 25.5 | 2332 |
1x300 | 1.8 | 1.8 | 27.8 | 2906.9 |
1x400 | 2 | 1.9 | 31.3 | 3797.9 |
Single core power cables are indicated for the transport and distribution of low voltage electricity. Recommended for industrial connections, service connections, internal distribution and outdoor connections. It can be used in underground networks and permanent installations.
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2：how about your quality?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,please consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
