300V, 105°C Flexible Copper Cord

SJOOW
300V, 105°C Flexible Copper Cord

  • 300V, 105°C Flexible Cord.

  • Heat, Moisture and Oil Resistant EPDM Rubber Insulation and Heat,

  • Moisture and Oil Resistant Flexible CPE Jacket

Get Price now

DLO 2kV Heavy Duty Flexible Power Cable Applications

DLO is a 2kV flexible power cable with a variety of possible applications such as but not limited to: Drilling rigs, railroad and transit car wiring, mining and other industrial equipment, and as flexible motor leads and wind turbine applications. The cable is suited for use in wet and dry areas, conduits, ducts, troughs, trays, and where superior electrical properties are desired. DLO is oil, heat, flame, abrasion, and sunlight resistant.


DLO 2kV Heavy Duty Flexible Power Cable


DLO 2kV Heavy Duty Flexible Power Cable Specifications

  • ICEA S-95-658/ NEMA WC-70: Nonshielded Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy

  • UL Standard 44: Thermoset Insulated Wires & Cables, Types RHH, RHW-2. UL VW-1

  • UL Standard 1685: Vertical Tray Fire propagation and Smoke Release Test for Electrical and optical Fiber Cables. (UL, ST-1)

  • ASTM B-33: Standard Specification for Tinned Soft or Annealed Copper Wire for Electrical Purposes

  • ASTM B-172: Standard Specification for Rope-Lay-Stranded Copper


SJOOW 300V, 105°C Flexible Copper Cord Data

Power

Conductor

Conductor Size

Cond. Strands

Insul.

Thickness

NOMINAL O.D.

APPROX.

NET WT.

No.of Conductors

AWG/ kcmil

No.

In

mm

In

mm

(Lbs/Mft)

kg/km

2

18

16/30

0.03

0.76

0.29

7.24

46

68

2

16

26/30

0.03

0.76

0.31

7.87

55

82

2

14

41/30

0.03

0.76

0.34

8.64

75

112

2

12

65/30

0.03

0.76

0.41

10.41

108

161

2

10

104/30

0.05

1.14

0.62

15.75

226

336


3

18

16/30

0.03

0.76

0.31

7.75

60

89

3

16

26/30

0.03

0.76

0.33

8.38

74

110

3

14

41/30

0.03

0.76

0.37

9.27

100

149

3

12

65/30

0.03

0.76

0.43

10.92

150

223

3

10

104/30

0.05

1.14

0.57

14.45

244

363


4

18

16/30

0.03

0.76

0.33

8.38

73

109

4

16

26/30

0.03

0.76

0.36

9.07

85

126

4

14

41/30

0.03

0.76

0.40

10.03

119

177

4

12

65/30

0.03

0.76

0.48

12.07

176

262

4

10

104/30

0.05

1.14

0.64

16.13

302

449

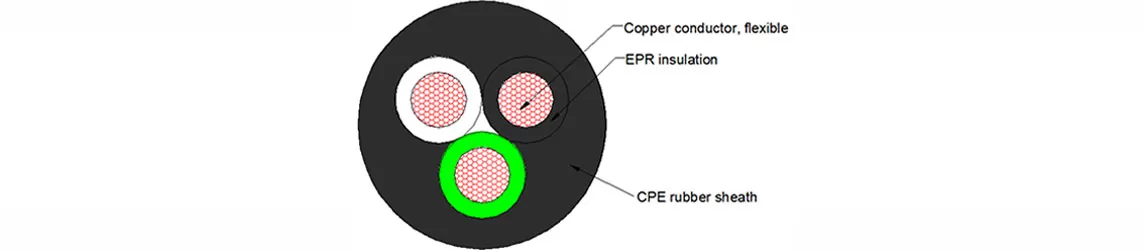

SJOOW 300V, 105°C Flexible Copper Cord Construction

SJOOW 300V, 105°C Flexible Copper Cord Construction


1. Conductors: Class K stranded bare copper per ASTM B-174


2. Insulation: ERP


3. Jacket: Black chlorinated polyethylene CPE, which is oil, moisture and abrasion resistant


SJOOW 300V, 105°C Flexible Copper Cord Color Code Chart

NO. OF
CONDUCTORS

COLOR

2

Black, White

3

Black, White, Green

4

Black, White, Red, Green

5

Black, White, Red, Green, Orange
