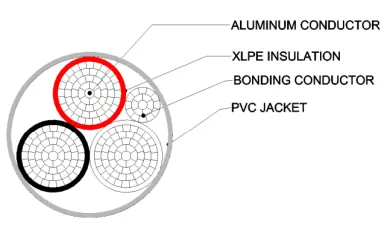

ALUMINUM CONDUCTORS,300 VOLTS, -25ºC MIN, 90ºC MAX, NON-METALLIC SHEATHED CABLE
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations. The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is minus 25°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts.
CSAC22.2 No. 48, Nonmetallic sheathed cable
CSAC22.2 No. 38, Thermoset-insulated wires and cables
CSAC22.2 No. 2556, FT1 Vertical Propagation Flame Test
001M 4AWG 3C+6AWG 1C AA8000AL XLPE NMD90 FT1 300V CSA271587 CSA C22.2 No48 03-2024
Power Conductor | Bonding Conductor | Insulation Thickness | Jacket Thickness | Cable O.D. | Cable Weight | Max DC resistance | |||||
Conductor Count | AWG | AWG | in | mm | in | mm | in | mm | lbs/mft | kg/km | Ω/km |
3 | 8/7 | 10/1 | 0.035 | 0.89 | 0.045 | 1.14 | 0.583 | 14.8 | 155.78 | 231.8 | 3.52 |
3 | 6/7 | 8/7 | 0.045 | 1.14 | 0.045 | 1.14 | 0.713 | 18.1 | 226.86 | 337.6 | 2.21 |
3 | 4/7 | 8/7 | 0.045 | 1.14 | 0.06 | 1.52 | 0.839 | 21.4 | 319.59 | 475.6 | 1.39 |
3 | 3/7 | 6/7 | 0.045 | 1.14 | 0.08 | 2.03 | 0.949 | 24.1 | 413.06 | 614.7 | 1.1 |
3 | 2/7 | 6/7 | 0.045 | 1.14 | 0.08 | 2.03 | 1.016 | 25.8 | 471.19 | 701.2 | 0.875 |
4 | 8/7 | 10/7 | 0.035 | 0.89 | 0.045 | 1.14 | 0.583 | 14.8 | 192.12 | 285.9 | 3.52 |
4 | 6/7 | 8/7 | 0.045 | 1.14 | 0.045 | 1.14 | 0.713 | 18.1 | 283.17 | 421.4 | 2.21 |
4 | 4/7 | 8/7 | 0.045 | 1.14 | 0.06 | 1.52 | 0.839 | 21.4 | 387.4 | 591.4 | 1.39 |
4 | 3/7 | 6/7 | 0.045 | 1.14 | 0.08 | 2.03 | 0.949 | 24.1 | 511.17 | 760.7 | 1.1 |
4 | 2/7 | 6/7 | 0.045 | 1.14 | 0.08 | 2.03 | 1.016 | 25.8 | 585.02 | 870.6 | 0.875 |
Gray
