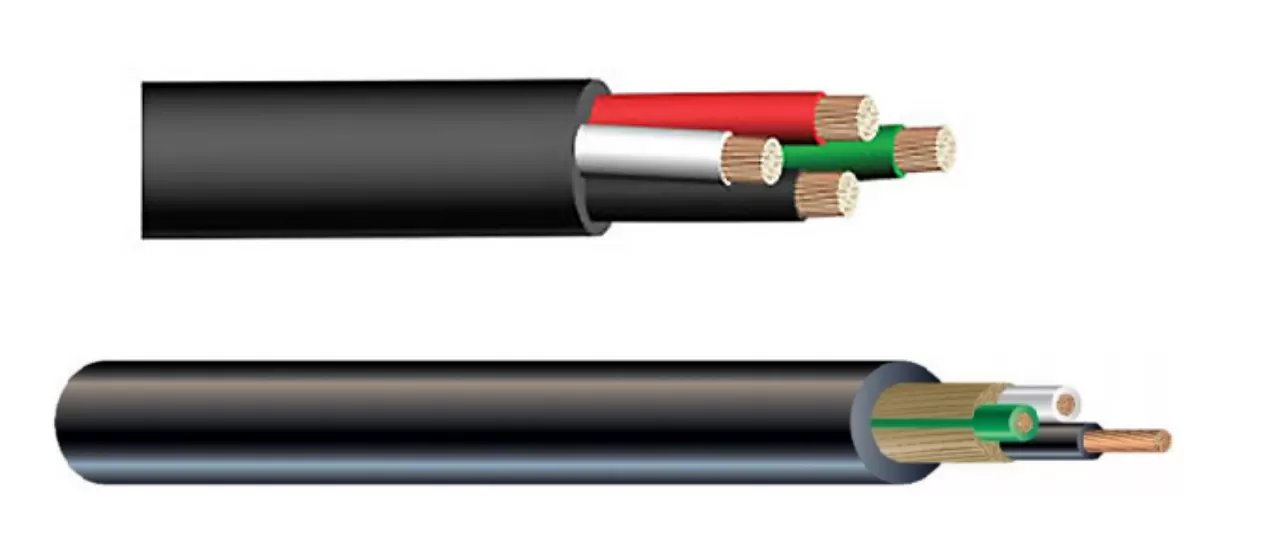

The SOOW flexible cord features:
600 Volt 90°C Flexible Cord.
Heat, Moisture and Oil Resistant EPDM Rubber Insulation,
Heat, Moisture and Oil Resistant Flexible CPE Jacket.
SOOW Flexible Cords UL/ CSA listed are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code. The SOOW cable is rated -40°C to 90°C, water, oil, and weather resistant.
As a type of UL cable, the SOOW power cord is for use with portable tools, equipment, appliances, small motors and associated machinery where flexibility and durability are required.
The Specifications of this SOOW 600V cable are as follows:
• UL 62
• CSA Standard 22.2 No. 49
• NEC 400
• NEC 501.140 Class I Division 2
• Passes CSA FT2 Flame Test
• MSHA
• Federal and Military Specification JC-580B
• RoHS-2 (European Directive 2011/65/EU )
Zetastone Cable offers the highest-quality cables at the most competitive SOOW cable price. If you are exploring SOOW cable for sale, contact us today for the best cable solutions.
Power Conductor | Conductor Size | Cond. Strands | Insul. Thickness | NOMINAL O.D. | APPROX. NET WT. | ||
No.of Conductors | AWG/ kcmil | No. | In | mm | In | mm | kg/km |
2 | 18 | 16/30 | 0.030 | 0.76 | 0.345 | 8.76 | 114.5 |
2 | 16 | 26/30 | 0.030 | 0.76 | 0.370 | 9.40 | 127.6 |
2 | 14 | 41/30 | 0.045 | 1.14 | 0.510 | 12.95 | 231.5 |
2 | 12 | 65/30 | 0.045 | 1.14 | 0.570 | 14.48 | 308.8 |
2 | 10 | 104/30 | 0.045 | 1.14 | 0.620 | 15.75 | 388.1 |
3 | 18 | 16/30 | 0.030 | 0.76 | 0.365 | 9.27 | 124 |
3 | 16 | 26/30 | 0.030 | 0.76 | 0.390 | 9.91 | 148.6 |
3 | 14 | 41/30 | 0.045 | 1.14 | 0.535 | 13.59 | 268 |
3 | 12 | 65/30 | 0.045 | 1.14 | 0.595 | 15.11 | 360 |
3 | 10 | 104/30 | 0.045 | 1.14 | 0.660 | 16.76 | 460.4 |
3 | 8 | 133/29 | 0.060 | 1.52 | 0.840 | 21.33 | 552.8 |
3 | 6 | 133/27 | 0.060 | 1.52 | 0.980 | 24.89 | 775.9 |
3 | 4 | 133/25 | 0.060 | 1.52 | 1.140 | 28.96 | 1125.4 |
3 | 2 | 133/23 | 0.060 | 1.52 | 1.330 | 33.78 | 1677.4 |
4 | 18 | 16/30 | 0.030 | 0.76 | 0.390 | 9.91 | 143.7 |
4 | 16 | 26/30 | 0.030 | 0.76 | 0.420 | 10.67 | 178.9 |
4 | 14 | 41/30 | 0.045 | 1.14 | 0.575 | 14.61 | 322.1 |
4 | 12 | 65/30 | 0.045 | 1.14 | 0.650 | 16.51 | 433.3 |
4 | 10 | 104/30 | 0.045 | 1.14 | 0.715 | 18.16 | 560.5 |
4 | 8 | 133/29 | 0.060 | 1.52 | 0.945 | 24.00 | 863.1 |
4 | 6 | 133/27 | 0.060 | 1.52 | 1.080 | 27.43 | 1235.2 |
4 | 4 | 133/25 | 0.060 | 1.52 | 1.260 | 32.00 | 1703.9 |
4 | 2 | 133/23 | 0.060 | 1.52 | 1.460 | 37.08 | 2528.4 |
5 | 8 | 133/29 | 0.060 | 1.52 | 1.030 | 26.16 | 1041.7 |
5 | 6 | 133/27 | 0.060 | 1.52 | 1.200 | 30.48 | 1510.5 |
5 | 4 | 133/25 | 0.060 | 1.52 | 1.365 | 34.67 | 2111.7 |
5 | 2 | 133/23 | 0.060 | 1.52 | 1.580 | 40.13 | 3074.5 |

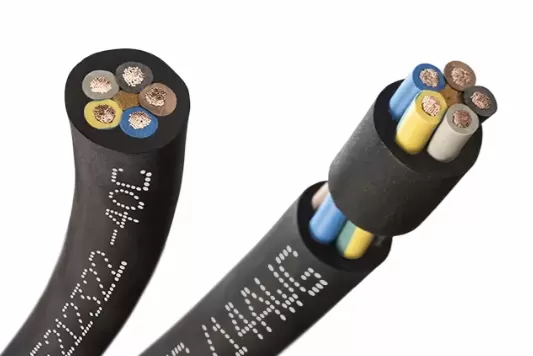

1. Conductors: Class K stranded bare copper per ASTM B-174
2. Insulation: EPDM
3. Jacket: Black CPE (Other colors available upon request)
NO. OF | COLOR |
2 | Black, White |
3 | Black, White, Green |
4 | Black, White, Red, Green |
5 | Black, White, Red, Green, Orange |
