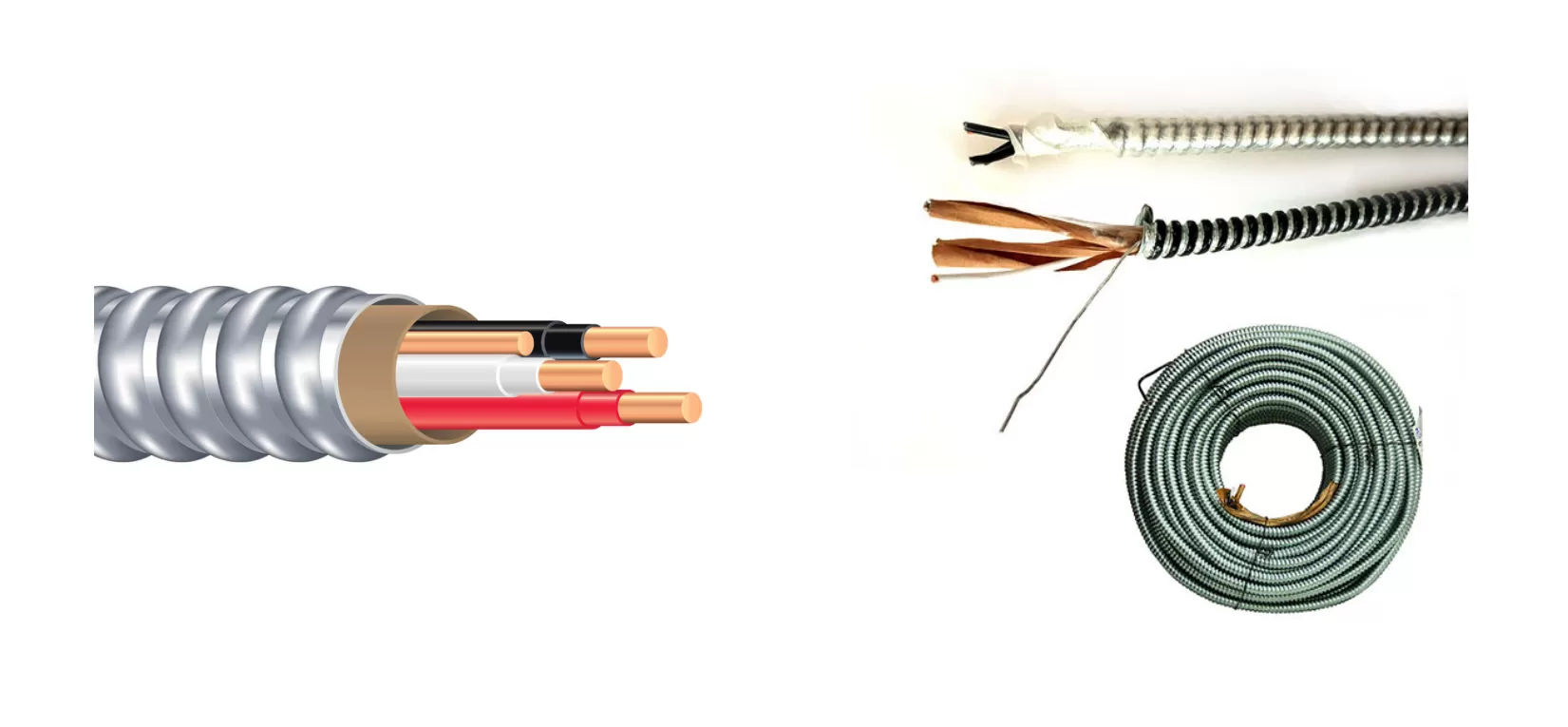

Metal Clad Armored Cable,600V;
RW90 Insulation, Armored, Multi-conductor, Copper
For exposed or concealed wiring in dry locations only.
Use in ventilated, non-ventilated and ladder-type cable trays
or service entrance above ground.
Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
Maximum conductor temperature 90°C. Approved for use with ceiling fixtures.
CSA Spec. C22.2, No. 51 - Armoured Cables
CSA File Listing: LL90458
CSA -40°C Cold Temperature Rating
CSAC22.2 No. 38 Thermoset-insulated wires and cables
CSA C22.2 No. 2556 FT4-ST1 Vertical-Tray Flame Test
-40°C Cold Bend and -40°C Cold Impact
HALOGEN-FREE
HT CABLES CSA271587 8AWG 3CDRS Type AC90 TYPE RW90 600V XLPE Cu AIA ARMORED CSA C22.2 NO.51 (-40C) 02-2024
Power Conductor | Ground Conductor | Cable O.D | Cable Weight | |||||
No. of Conductors | AWG | Nos of Strands | Insulation Thickness（mm） | AWG | Nos of Strands | in | mm | kg/km |
2 | 14 | 1 | 0.76 | 14 | 1 | 0.484 | 12.3 | 157.8 |
2 | 12 | 1 | 0.76 | 14 | 1 | 0.516 | 13.1 | 185.5 |
2 | 10 | 1 | 0.76 | 12 | 1 | 0.559 | 14.2 | 243.2 |
3 | 14 | 1 | 0.76 | 14 | 1 | 0.504 | 12.8 | 184.4 |
3 | 12 | 1 | 0.76 | 14 | 1 | 0.539 | 13.7 | 226.7 |
3 | 10 | 1 | 0.76 | 12 | 1 | 0.583 | 14.8 | 303.2 |
3 | 8 | 7 | 1.14 | 10 | 7 | 0.732 | 18.6 | 463 |
3 | 6 | 7 | 1.14 | 8 | 7 | 0.815 | 20.7 | 644 |
3 | 3 | 7 | 1.14 | 6 | 7 | 0.984 | 25 | 1119 |
4 | 14 | 1 | 0.76 | 14 | 1 | 0.543 | 13.8 | 218.5 |
4 | 12 | 1 | 0.76 | 14 | 1 | 0.579 | 14.7 | 272.2 |
4 | 10 | 1 | 0.76 | 12 | 1 | 0.638 | 16.2 | 366.7 |
Conductor: Solid Soft Bare Copper Conductors, ASTM B3 8-2 AWG - Stranded Bare Soft Copper, ASTM B8
Insulation: Cross-linked Polyethylene Insulation (XLPE) CSA Type XL 90°C dry/wet 600V
Bonding: Solid Soft Bare and Insulated Copper Conductor
Armour: Aluminum or Galvanized Steel Interlock Armour
Black, White, Red, Blue and Green for Insulated Ground or as requirments.
– Pairs are Black and White
