High-Quality Earth Wires – Reliable Electrical Grounding for Safety & Compliance

Earth Wire Types

•

  6491X / H07V-R / H07V-U EN 50525-2-31

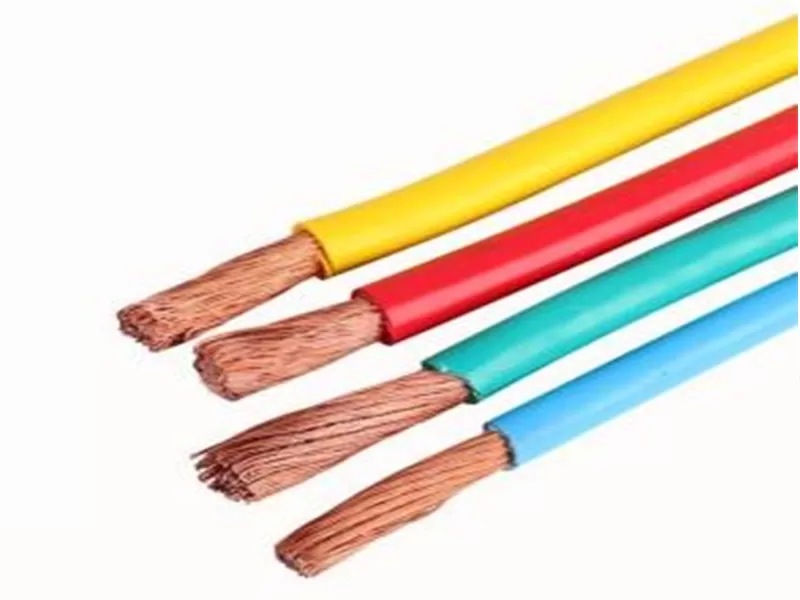

  Cable Earth Wire

  Voltage Rating: Uo/U450/750V
  Temperature Rating:-15°C to +70°C
  Minimum Bending Radius:up to 10mm²: 3 x overall diameter 10mm² to 25mm²: 4 x overall diameter;Above 25mm²: 5 x overall diameter
  Standards:EN 50525-2-31 :Flame Retardant according to IEC/EN 60332-1-2
•

  PVC

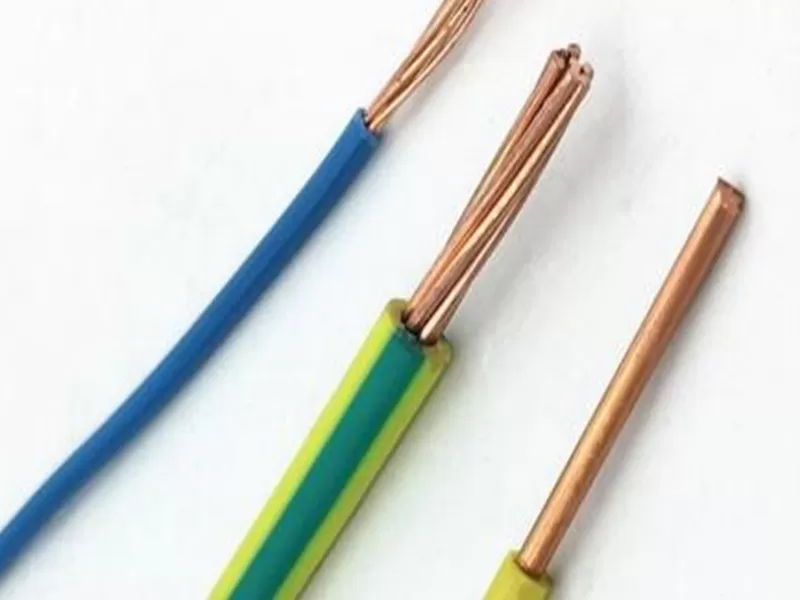

  Electric Power Earth Wire Cable

  Conductor:solid copper conductor
  Insulation:PVC,PE
  Standard:IEC 60227, BS 6004
•

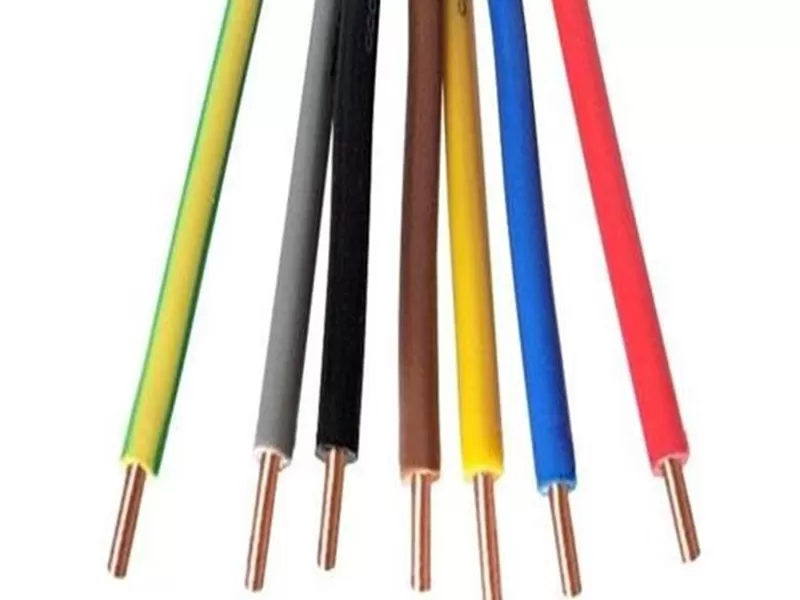

  H07V-U
  Earth Wire

  Voltage Rating Uo/U : 450 / 750 V
  Operating temperature : 70°C
  short circuit temperature : 160°C
  Temperature of use : -15°C +60°C
