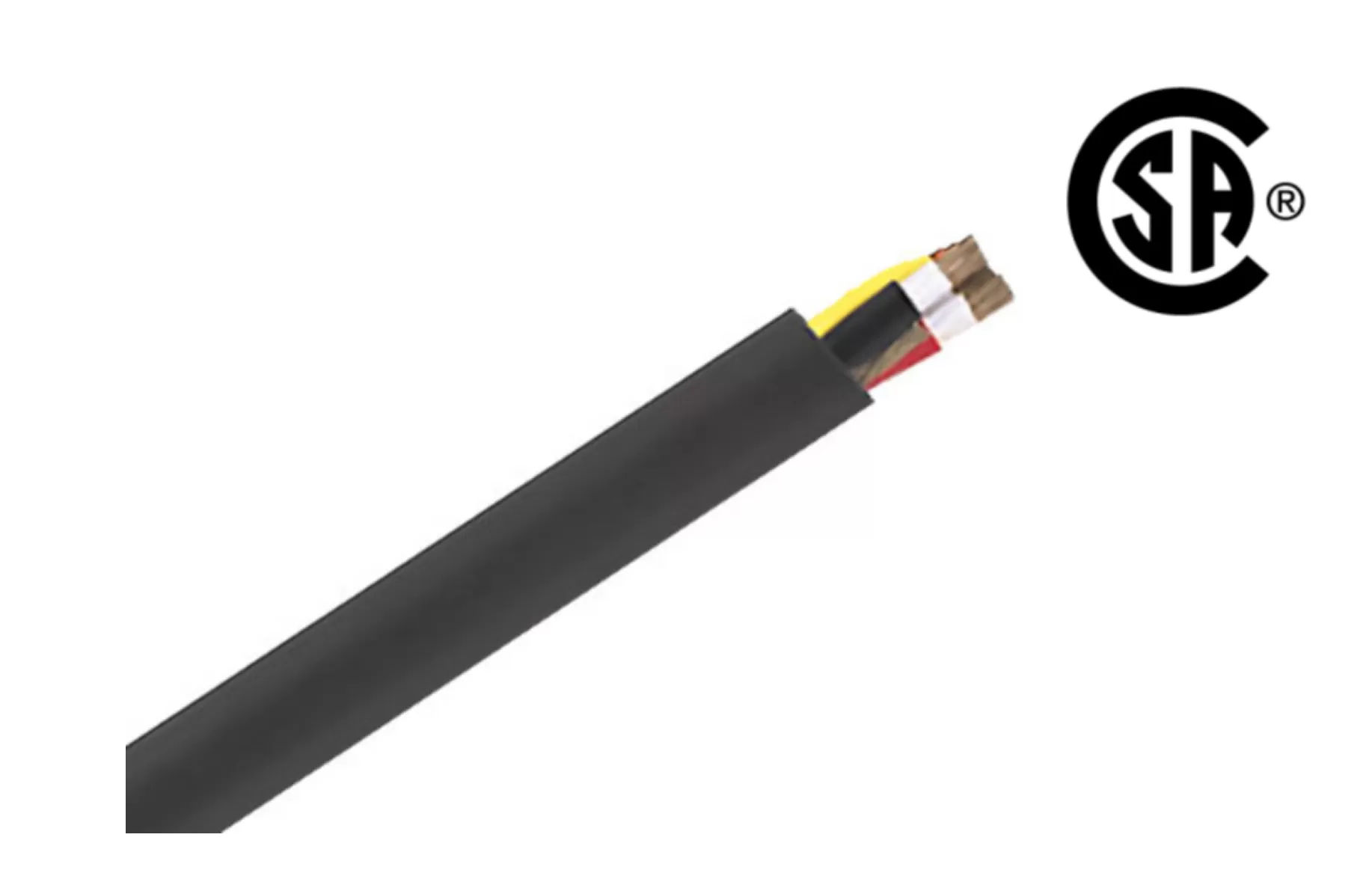

Flexible Copper conductors, Ethylene Propylene Diene Monomer (EPDM) insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket
Type G-GC cable is a heavy-duty industrial cable for use in flexible, portable, and extra-hard usage applications where equipment grounding is required per NEC Article 400. Suitable for continuous submersion in water – ideal for submersible pumps, marine application. Also suitable for use in light to medium-duty mining applications. Sunlight and oil resistant. Highly flexible and easy to work with in cold conditions. Not for use as permanent building wiring.
MSHA listed
ICEA Standard S-75-381/NEMA WC-58, ASTM B-172 and B-33
CSA C22.2, No.96 Portable Power Cables
Type G-GC 2000V MSHA Copper Cable Data
Power conductor | Number | Bonding | Check wire | Insulation | Cable | Weight |
size | Nos. | size | size | mm | mm | kg/km |
3*6 | 133 | 2*10 | 1*10 | 1.52 | 26.6 | 1095 |
3*4 | 259 | 2*8 | 1*10 | 1.52 | 30.2 | 1585 |
3*3 | 259 | 2*8 | 1*10 | 1.52 | 31.5 | 1855 |
3*2 | 259 | 2*7 | 1*10 | 1.52 | 34 | 2200 |
3*1 | 259 | 2*6 | 1*8 | 2.03 | 38.3 | 2805 |
3*1/0 | 266 | 2*5 | 1*8 | 2.03 | 41.9 | 3410 |
3*2/0 | 342 | 2*4 | 1*8 | 2.03 | 44.4 | 4035 |
3*3/0 | 418 | 2*3 | 1*8 | 2.03 | 48 | 4865 |
3*4/0 | 532 | 2*2 | 1*8 | 2.03 | 51.8 | 5915 |
3*250 | 627 | 2*2 | 1*6 | 2.41 | 60.7 | 7365 |
3*350 | 888 | 2*1/0 | 1*6 | 2.41 | 68 | 9860 |
3*500 | 1221 | 2*2/0 | 1*6 | 2.41 | 76.9 | 13230 |
