Flexible Copper conductors, Ethylene Propylene Diene Monomer (EPDM) insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket
Type G cable is a heavy-duty industrial cable for use in flexible, portable, and extra-hard usage applications where equipment grounding is required per NEC Article 400.
Suitable for continuous submersion in water – ideal for submersible pumps, marine application. Also suitable for use in light to medium-duty mining applications. Sunlight and oil resistant.
Highly flexible and easy to work with in cold conditions. Not for use as permanent building wiring.
ASTM B3 Soft or Annealed Copper Wire
ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
UL 1650 Standard for Portable Power Cable
MSHA Approved
RoHS-2 (European Directive 2011/65/EU)
Conductor | Conductor Size | Cond. Strands | Diameter Over Conductor | Insul. Thickness | Ground | Jacket Thickness | Approx. OD | Approx. Weight | |||
No.of Conductors | AWG/ kcmil | No. | In | mm | mm | No. x AWG | mm | In | mm | lb/1000ft | kg/km |
4 | 8 | 71 | 0.145 | 3.68 | 1.52 | 4 x 12 | 3.68 | 0.985 | 25.02 | 629 | 936.06 |
4 | 6 | 65 | 0.186 | 4.72 | 1.52 | 4 x 12 | 3.68 | 1.130 | 28.70 | 865 | 1287.26 |
4 | 4 | 112 | 0.235 | 5.97 | 1.52 | 4 x 10 | 4.45 | 1.222 | 31.04 | 1121 | 1668.23 |
4 | 2 | 168 | 0.290 | 7.37 | 1.52 | 4x9 | 5.21 | 1.479 | 37.57 | 1882 | 2800.72 |
4 | 1 | 224 | 0.300 | 7.62 | 2.03 | 4x8 | 3.68 | 1.591 | 40.41 | 2063 | 3070.08 |
4 | 1/0 | 259 | 0.379 | 9.63 | 2.03 | 4x7 | 3.94 | 1.755 | 44.58 | 2452 | 3648.98 |
4 | 2/0 | 324 | 0.400 | 10.16 | 2.03 | 4x6 | 3.94 | 1.930 | 49.02 | 3057 | 4549.32 |
4 | 3/0 | 418 | 0.480 | 12.19 | 2.03 | 4x5 | 3.94 | 2.048 | 52.02 | 3679 | 5474.96 |
4 | 4/0 | 532 | 0.530 | 13.46 | 2.03 | 4x4 | 3.94 | 2.175 | 55.25 | 4392 | 6536.02 |
4 | 250 | 608 | 0.605 | 15.37 | 2.41 | 4x3 | 6.86 | 2.527 | 64.19 | 5609 | 8347.11 |
4 | 350 | 893 | 0.670 | 17.02 | 2.41 | 4x2 | 6.86 | 2.972 | 75.49 | 8110 | 12069.01 |
4 | 500 | 1221 | 0.858 | 21.79 | 2.41 | 4 x 1/0 | 8.26 | 3.230 | 82.04 | 10201 | 15180.76 |

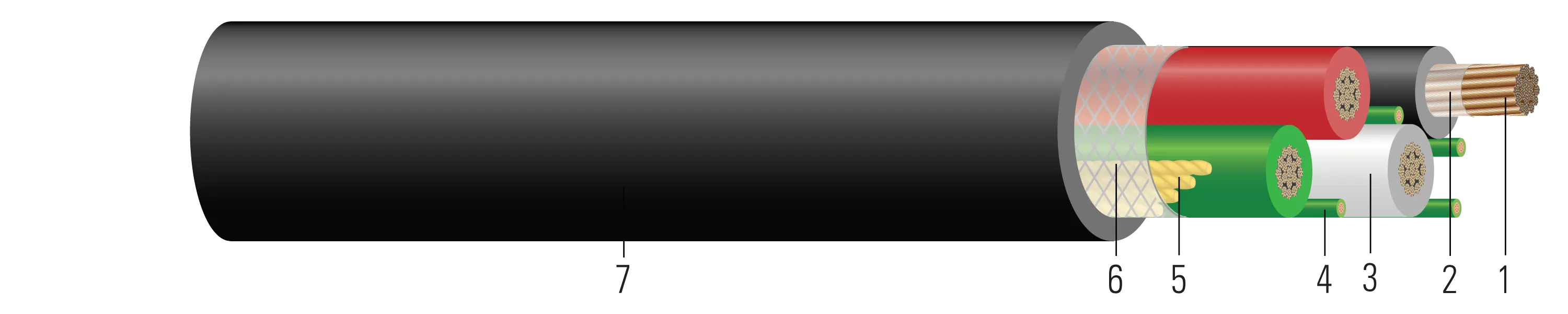

Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B3/B172
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white, blue, red for sizes #4/0 and smallerand black, white, red, orange for sizes over 250 kcmil
Ground Conductors: Four insulated, bare, soft drawn, annealed, rope stranded, flexible lay copper per ASTM B3/B172
Fillers: Jute fillers applied as needed to round the cable core
Reinforcement Binder: Reinforcing binder with twine applied over the core
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
