Flexible Copper Conductors, Ethylene Propylene Diene Monomer (EPDM) Insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket. Type RHH/RHW-2 90°C Wet and Dry
Flexible Copper Conductors, Ethylene Propylene Diene Monomer (EPDM) Insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket. Type RHH/RHW-2 90°C Wet and Dry
Suitable for continuous submersion in water – ideal for submersible pumps. Also suitable for use in light to medium-duty mining applications. Sunlight and oil resistant. Highly flexible and easy to work with in cold conditions. Not for
use as permanent building wiring. Meets FT-5 Flame Test.
ASTM B3 Soft or Annealed Copper Wire
ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
UL 1650 Standard for Portable Power Cable
MSHA Approved
RoHS-2 (European Directive 2011/65/EU)

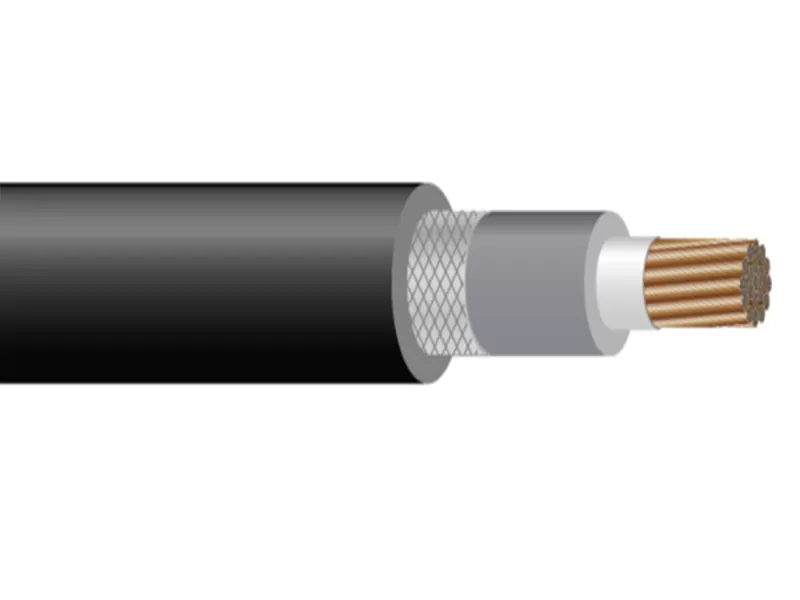

1. Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B3/B172
2. Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
3. Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white, red, green, orange
4. Fillers: Jute fillers applied as needed to round the cable core
5. Reinforcement Binder: Reinforcing binder with twine applied over the core
6. Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
Conductor | Conductor Size | Cond. Strands | Diameter Over Conductor | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | |||
No.of Conductors | AWG/ kcmil | No. | In | mm | mm | mm | In | mm | lb/1000ft | kg/km |
8 | 168 | 0.145 | 3.68 | 1.52 | 1.91 | 0.433 | 11.00 | 132 | 196.44 | |
1 | 6 | 273 | 0.186 | 4.72 | 1.52 | 2.41 | 0.522 | 13.26 | 191 | 284.24 |
1 | 4 | 427 | 0.235 | 5.97 | 1.52 | 2.41 | 0.572 | 14.53 | 255 | 379.48 |
1 | 2 | 651 | 0.290 | 7.37 | 1.52 | 2.41 | 0.606 | 15.39 | 299 | 444.96 |
1 | 2 | 259 | 0.290 | 7.37 | 1.52 | 2.41 | 0.666 | 16.92 | 352 | 523.83 |
1 | 1 | 259 | 0.300 | 7.62 | 2.03 | 2.41 | 0.714 | 18.14 | 432 | 642.89 |
1 | 1/0 | 259 | 0.379 | 9.63 | 2.03 | 2.41 | 0.759 | 19.28 | 514 | 764.92 |
1 | 2/0 | 324 | 0.400 | 10.16 | 2.03 | 2.41 | 0.820 | 20.83 | 614 | 913.73 |
1 | 3/0 | 418 | 0.480 | 12.19 | 2.03 | 2.54 | 0.854 | 21.69 | 749 | 1114.63 |
1 | 4/0 | 532 | 0.530 | 13.46 | 2.03 | 2.41 | 0.901 | 22.89 | 894 | 1330.42 |
1 | 250 | 608 | 0.605 | 15.37 | 2.41 | 2.41 | 1.011 | 25.68 | 1059 | 1575.97 |
1 | 350 | 893 | 0.670 | 17.02 | 2.41 | 2.41 | 1.110 | 28.19 | 1411 | 2099.80 |
1 | 500 | 1221 | 0.858 | 21.79 | 2.41 | 2.41 | 1.254 | 31.85 | 1898 | 2824.54 |
1 | 500 | 1221 | 0.858 | 21.79 | 2.41 | 2.41 | 1.284 | 32.61 | 1935 | 2879.60 |
2 | 8 | 71 | 0.145 | 3.68 | 1.52 | 2.92 | 0.801 | 20.35 | 330 | 491.09 |
2 | 6 | 65 | 0.186 | 4.72 | 1.52 | 2.79 | 0.852 | 21.64 | 403 | 599.73 |
2 | 4 | 112 | 0.235 | 5.97 | 1.52 | 2.79 | 1.020 | 25.91 | 611 | 909.27 |
2 | 2 | 168 | 0.290 | 7.37 | 1.52 | 3.68 | 1.130 | 28.70 | 744 | 1107.19 |
2 | 1 | 224 | 0.300 | 7.62 | 2.03 | 3.94 | 1.250 | 31.75 | 925 | 1376.55 |
2 | 1/0 | 259 | 0.385 | 9.78 | 2.03 | 3.94 | 1.511 | 38.38 | 1203 | 1790.26 |
2 | 2/0 | 324 | 0.400 | 10.16 | 2.03 | 3.94 | 1.497 | 38.02 | 1382 | 2056.64 |
2 | 3/0 | 418 | 0.480 | 12.19 | 2.03 | 3.94 | 1.610 | 40.89 | 1764 | 2625.12 |
0.00 | ||||||||||
3 | 8 | 71 | 0.145 | 3.68 | 1.52 | 3.68 | 0.963 | 24.46 | 477 | 709.85 |
3 | 6 | 65 | 0.186 | 4.72 | 1.52 | 3.68 | 1.030 | 26.16 | 609 | 906.29 |
3 | 4 | 112 | 0.235 | 5.97 | 1.52 | 3.18 | 1.170 | 29.72 | 881 | 1311.07 |
3 | 2 | 168 | 0.290 | 7.37 | 1.52 | 3.68 | 1.292 | 32.82 | 1151 | 1712.88 |
3 | 1 | 224 | 0.300 | 7.62 | 2.03 | 3.68 | 1.304 | 33.12 | 1173 | 1745.62 |
3 | 1/0 | 259 | 0.379 | 9.63 | 2.03 | 4.06 | 1.505 | 38.23 | 1671 | 2486.72 |
3 | 2/0 | 324 | 0.400 | 10.16 | 2.03 | 3.94 | 1.691 | 42.95 | 2098 | 3122.17 |
3 | 3/0 | 418 | 0.480 | 12.19 | 2.03 | 4.06 | 1.713 | 43.51 | 2406 | 3580.52 |
3 | 4/0 | 532 | 0.530 | 13.46 | 2.03 | 4.45 | 1.913 | 48.59 | 2904 | 4321.63 |
3 | 250 | 608 | 0.605 | 15.37 | 2.41 | 3.94 | 2.048 | 52.02 | 3382 | 5032.97 |
3 | 350 | 893 | 0.670 | 17.02 | 2.41 | 6.22 | 2.685 | 68.20 | 5679 | 8451.28 |
3 | 500 | 1221 | 0.858 | 21.79 | 2.41 | 6.22 | 2.800 | 71.12 | 6568 | 9774.26 |
3 | 500 | 1221 | 0.858 | 21.79 | 2.41 | 6.86 | 2.861 | 72.67 | 6897 | 10263.87 |
4 | 8 | 71 | 0.145 | 3.68 | 1.52 | 3.94 | 0.988 | 25.10 | 577 | 858.67 |
4 | 8 | 133 | 0.145 | 3.68 | 1.52 | 3.94 | 1.011 | 25.68 | 573 | 852.72 |
4 | 6 | 65 | 0.186 | 4.72 | 1.52 | 3.68 | 1.120 | 28.45 | 748 | 1113.15 |
4 | 4 | 427 | 0.235 | 5.97 | 1.52 | 3.68 | 1.171 | 29.74 | 952 | 1416.73 |
4 | 4 | 112 | 0.235 | 5.97 | 1.52 | 3.18 | 1.223 | 31.06 | 1054 | 1568.52 |
4 | 2 | 168 | 0.290 | 7.37 | 1.52 | 3.68 | 1.465 | 37.21 | 1766 | 2628.10 |
4 | 1 | 224 | 0.300 | 7.62 | 2.03 | 3.68 | 1.654 | 42.01 | 1985 | 2954.01 |
4 | 1/0 | 259 | 0.379 | 9.63 | 2.03 | 4.19 | 1.729 | 43.92 | 2249 | 3346.88 |
4 | 2/0 | 324 | 0.400 | 10.16 | 2.03 | 5.72 | 1.874 | 47.60 | 2764 | 4113.29 |
4 | 3/0 | 418 | 0.480 | 12.19 | 2.03 | 3.94 | 1.890 | 48.01 | 3226 | 4800.82 |
4 | 4/0 | 532 | 0.530 | 13.46 | 2.03 | 5.97 | 2.199 | 55.85 | 3979 | 5921.40 |
4 | 250 | 608 | 0.605 | 15.37 | 2.41 | 6.86 | 2.486 | 63.14 | 4705 | 7001.81 |
4 | 350 | 893 | 0.670 | 17.02 | 2.41 | 7.21 | 2.968 | 75.39 | 7114 | 10586.80 |
4 | 500 | 1221 | 0.858 | 21.79 | 2.41 | 7.87 | 3.178 | 80.72 | 8464 | 12595.82 |
5 | 8 | 71 | 0.145 | 3.68 | 1.52 | 3.94 | 1.056 | 26.82 | 665 | 989.63 |
5 | 6 | 65 | 0.186 | 4.72 | 1.52 | 3.56 | 1.210 | 30.73 | 881 | 1311.07 |
5 | 4 | 112 | 0.235 | 5.97 | 1.52 | 3.94 | 1.399 | 35.53 | 1347 | 2004.56 |
5 | 2 | 168 | 0.290 | 7.37 | 1.52 | 4.32 | 1.605 | 40.77 | 1990 | 2961.45 |
5 | 1 | 224 | 0.300 | 7.62 | 2.03 | 5.21 | 1.676 | 42.57 | 1907 | 2837.93 |
5 | 1/0 | 259 | 0.379 | 9.63 | 2.03 | 6.60 | 2.041 | 51.84 | 3075 | 4576.10 |
5 | 2/0 | 324 | 0.400 | 10.16 | 2.03 | 5.21 | 2.072 | 52.63 | 3336 | 4964.51 |
5 | 3/0 | 418 | 0.480 | 12.19 | 2.03 | 5.21 | 2.153 | 54.69 | 3893 | 5793.42 |
5 | 4/0 | 532 | 0.530 | 13.46 | 2.03 | 5.59 | 2.394 | 60.81 | 5313 | 7906.62 |
