Flexible Copper conductors, Ethylene Propylene Diene Monomer (EPDM) insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket
Flexible Copper conductors, EPR 100% Insulation Level, Cu/Nylon Braid Shield, Extra Heavy Duty Two Layer Chlorinated Polyethylene (CPE) Jac

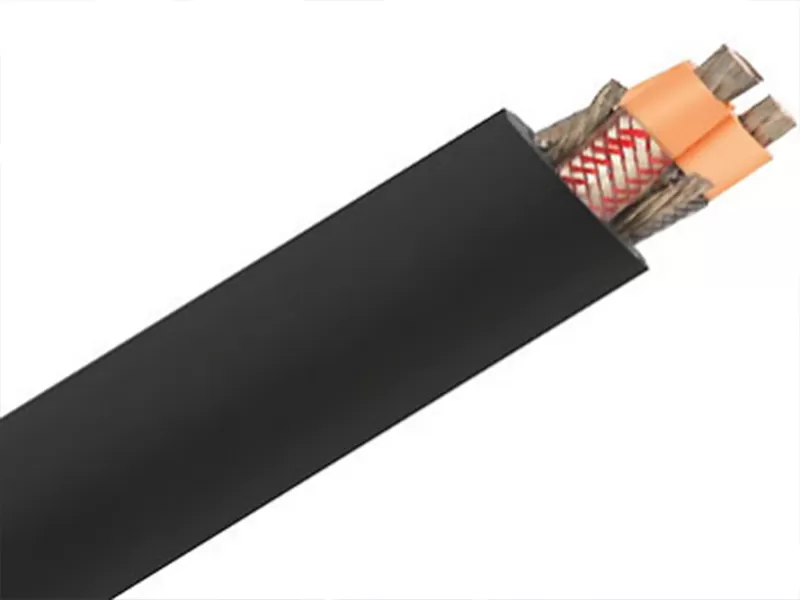

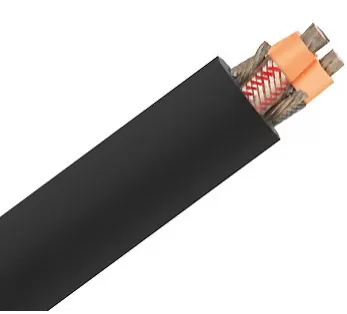

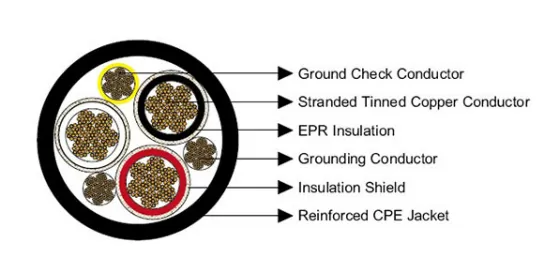

Type SHD-GC is a heavy-duty trailing cable where flexibility and maximum protection is required. For use with mobile, reeling, or stationary mining equipment, continuous mining machines, longwall mining systems, and blast hole drillers. It is also an excellent choice for shovels, draglines, dredges, cranes and marine shore-to-ship power supplies, and anytime extra-durable, flexible cable is required. Suitable for continuous submersion in water. Ground check conductor provides fail-safe ground monitoring. Embossed print legend for easy cable identification. Cold Bend and Impact Tested to -50°C.
ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
CSA C22.2 No. 96 Portable Power Cables
ICEA S-75-381 Portable and Power Feeder Cables for Use in Mines
Power Conductor | Number | Insulation | Bonding | Check | Jacket | Cable | Weight | |
Conductor Count | size | Nos. | mm | size | size | mm | mm | kg/km |
3 | 6 | 133 | 1.8 | 10 | 10 | 3.9 | 32.8 | 1682 |
3 | 4 | 259 | 1.8 | 8 | 10 | 3.9 | 35.6 | 2173 |
3 | 3 | 259 | 1.8 | 7 | 10 | 4.3 | 38.3 | 2500 |
3 | 2 | 259 | 1.8 | 6 | 8 | 4.3 | 40.4 | 2961 |
3 | 1 | 259 | 2 | 5 | 8 | 4.8 | 44.7 | 3549 |
3 | 1/0 | 259 | 2 | 4 | 8 | 4.8 | 47.2 | 4115 |
3 | 2/0 | 329 | 2 | 3 | 8 | 5.2 | 50.8 | 4844 |
3 | 3/0 | 413 | 2 | 2 | 8 | 5.2 | 54.1 | 5789 |
3 | 4/0 | 532 | 2 | 1 | 8 | 5.6 | 58.7 | 7024 |
3 | 250 | 608 | 2.4 | 1/0 | 6 | 5.6 | 63.8 | 8125 |
3 | 300 | 741 | 2.4 | 1/0 | 6 | 6 | 68.1 | 9517 |
3 | 350 | 851 | 2.4 | 2/0 | 6 | 6.4 | 71.4 | 10834 |
3 | 500 | 1221 | 2.4 | 4/0 | 6 | 6.7 | 81 | 14614 |
Power Conductor | Number | Insulation | Bonding | Check | Jacket | Cable | Weight | |
Conductor Count | size | Nos. | mm | size | size | mm | mm | kg/km |
3 | 6 | 133 | 2.8 | 10 | 8 | 4.7 | 39.6 | 2322 |
3 | 4 | 259 | 2.8 | 8 | 8 | 4.7 | 42.7 | 2820 |
3 | 2 | 259 | 2.8 | 6 | 8 | 5.2 | 47.9 | 3639 |
3 | 1 | 259 | 2.8 | 5 | 8 | 5.2 | 49.5 | 4167 |
3 | 1/0 | 259 | 2.8 | 4 | 8 | 5.6 | 52.8 | 4807 |
3 | 2/0 | 329 | 2.8 | 3 | 8 | 5.6 | 55.9 | 5655 |
3 | 3/0 | 413 | 2.8 | 2 | 8 | 6 | 59.9 | 6660 |
3 | 4/0 | 532 | 2.8 | 1 | 8 | 6 | 63.5 | 7835 |
3 | 250 | 608 | 2.8 | 1/0 | 6 | 6.4 | 68.3 | 9085 |
3 | 300 | 741 | 3 | 1/0 | 6 | 6.4 | 71.4 | 10231 |
3 | 350 | 851 | 3 | 2/0 | 6 | 6.7 | 74.9 | 11600 |
3 | 500 | 1221 | 3 | 4/0 | 6 | 7.1 | 84.1 | 15499 |
Data 8000V
Power Conductor | Number | Insulation | Bonding | Check | Jacket | Cable | Weight | |
Conductor Count | size | Nos. | mm | size | size | mm | mm | kg/km |
3 | 4 | 259 | 3.8 | 8 | 8 | 5.2 | 49.3 | 3594 |
3 | 2 | 259 | 3.8 | 6 | 8 | 5.6 | 53.8 | 4554 |
3 | 1 | 259 | 3.8 | 5 | 8 | 5.6 | 56.1 | 5104 |
3 | 1/0 | 259 | 3.8 | 4 | 8 | 5.6 | 58.9 | 5700 |
3 | 2/0 | 329 | 3.8 | 3 | 8 | 6 | 62.5 | 6593 |
3 | 3/0 | 413 | 3.8 | 2 | 8 | 6.4 | 66.5 | 7738 |
3 | 4/0 | 532 | 3.8 | 1 | 8 | 6.4 | 69.8 | 8713 |
3 | 250 | 608 | 3.8 | 1/0 | 6 | 6.4 | 73.4 | 9948 |
3 | 300 | 741 | 3.8 | 1/0 | 6 | 6.1 | 77.2 | 11384 |
3 | 350 | 851 | 3.8 | 2/0 | 6 | 7.1 | 81.3 | 12739 |
3 | 500 | 1221 | 3.8 | 4/0 | 6 | 7.5 | 90.4 | 16757 |
Power Conductor | Number | Insulation | Bonding | Check | Jacket | Cable | Weight | |
Conductor Count | size | Nos. | mm | size | size | mm | mm | kg/km |
3 | 2 | 259 | 5.3 | 6 | 8 | 6 | 61.2 | 5529 |
3 | 1 | 259 | 5.3 | 5 | 8 | 6 | 64 | 6042 |
3 | 1/0 | 259 | 5.3 | 4 | 8 | 6.4 | 67 | 6927 |
3 | 2/0 | 329 | 5.3 | 3 | 8 | 6.4 | 69.3 | 7783 |
3 | 3/0 | 413 | 5.3 | 2 | 8 | 6.7 | 73.7 | 8922 |
3 | 4/0 | 532 | 5.3 | 1 | 8 | 6.7 | 77.5 | 10209 |
3 | 250 | 608 | 5.3 | 1/0 | 6 | 6.7 | 78.74 | 11149 |
3 | 350 | 851 | 5.3 | 2/0 | 6 | 7.1 | 85.98 | 13194 |
3 | 500 | 1221 | 5.3 | 4/0 | 6 | 7.1 | 92.71 | 17463 |
Power Conductor | Number | Insulation | Bonding | Check | Jacket | Cable | Weight | |
Conductor Count | size | Nos. | mm | size | size | mm | mm | kg/km |
3 | 1 | 259 | 6.6 | 5 | 8 | 6.7 | 74.93 | 7872 |
3 | 1/0 | 259 | 6.6 | 4 | 8 | 6.7 | 77.47 | 8631 |
3 | 2/0 | 329 | 6.6 | 3 | 8 | 7.1 | 81.28 | 9695 |
3 | 3/0 | 413 | 6.6 | 2 | 8 | 7.1 | 84.58 | 10737 |
3 | 4/0 | 532 | 6.6 | 1 | 8 | 7.5 | 88.9 | 12277 |
3 | 250 | 608 | 6.6 | 1/0 | 6 | 7.5 | 89.92 | 13491 |
3 | 350 | 851 | 6.6 | 2/0 | 6 | 7.5 | 96.37 | 15057 |
