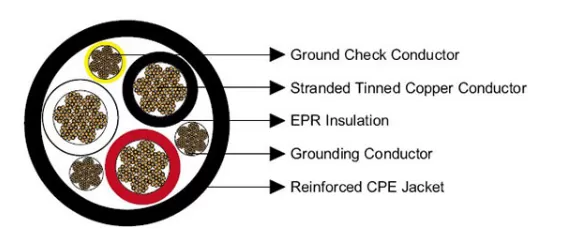

Flexible Copper conductors, Ethylene Propylene Diene Monomer (EPDM) insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket
Flexible Copper conductors, Ethylene Propylene Diene Monomer (EPDM) insulation, Single Layer Chlorinated Polyethylene (CPE) Jacket

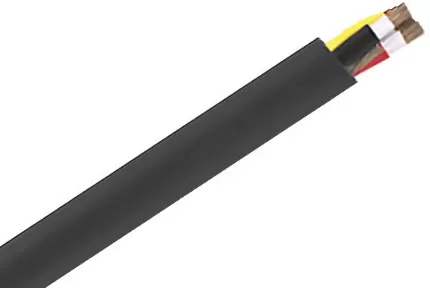

Type G-GC cable is a heavy-duty industrial cable for use in flexible, portable, and extra-hard usage applications where equipment grounding is required per NEC Article 400. Suitable for continuous submersion in water – ideal for submersible pumps, marine application. Also suitable for use in light to medium-duty mining applications. Sunlight and oil resistant. Highly flexible and easy to work with in cold conditions. Not for use as permanent building wiring.
MSHA listed
ICEA Standard S-75-381/NEMA WC-58, ASTM B-172 and B-33
CSA C22.2, No.96 Portable Power Cables
Power conductor | Number | Bonding | Check wire | Insulation | Cable | Weight |
size | Nos. | size | size | mm | mm | kg/km |
3*6 | 133 | 2*10 | 1*10 | 1.52 | 26.6 | 1095 |
3*4 | 259 | 2*8 | 1*10 | 1.52 | 30.2 | 1585 |
3*3 | 259 | 2*8 | 1*10 | 1.52 | 31.5 | 1855 |
3*2 | 259 | 2*7 | 1*10 | 1.52 | 34 | 2200 |
3*1 | 259 | 2*6 | 1*8 | 2.03 | 38.3 | 2805 |
3*1/0 | 266 | 2*5 | 1*8 | 2.03 | 41.9 | 3410 |
3*2/0 | 342 | 2*4 | 1*8 | 2.03 | 44.4 | 4035 |
3*3/0 | 418 | 2*3 | 1*8 | 2.03 | 48 | 4865 |
3*4/0 | 532 | 2*2 | 1*8 | 2.03 | 51.8 | 5915 |
3*250 | 627 | 2*2 | 1*6 | 2.41 | 60.7 | 7365 |
3*350 | 888 | 2*1/0 | 1*6 | 2.41 | 68 | 9860 |
3*500 | 1221 | 2*2/0 | 1*6 | 2.41 | 76.9 | 13230 |
