Choosing the right fire-resistant cable is essential for electrical systems that must continue operating under extreme conditions. BTTZ cable is a type of rigid mineral insulated cable known for its excellent fire resistance, high temperature tolerance, and long service life. It is commonly used in critical power circuits where electrical continuity is required during fire emergencies.
Compared with conventional power cables, BTTZ cable has a unique mineral insulated structure. It is typically made with copper conductors, magnesium oxide insulation, and a copper sheath. This inorganic composition allows the cable to withstand high temperatures and harsh operating environments. In this article, we will explore the definition of BTTZ cable, its fire-resistant applications, performance characteristics, advantages and limitations, and common installation considerations.

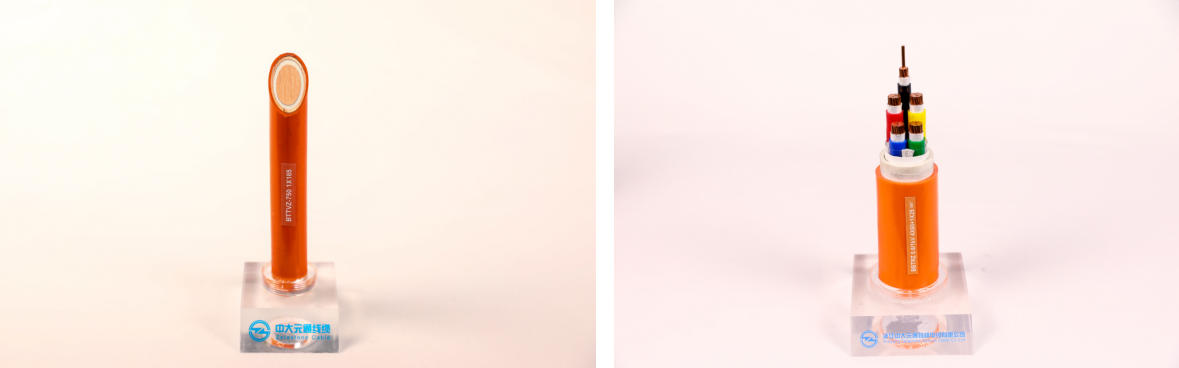

BTTZ cable is commonly known as a rigid mineral insulated fire-resistant cable. It is generally composed of copper conductors, magnesium oxide insulation, and a copper sheath. Because the main materials are inorganic and non-combustible, BTTZ cable offers a much higher level of fire resistance than many conventional organic-insulated cables.
The copper conductor is responsible for transmitting electrical current, while the magnesium oxide insulation provides electrical insulation and high temperature resistance. The copper sheath protects the internal structure and also contributes to the cable’s mechanical strength, moisture resistance, and fire-resistant performance.
Cable Type | Application | Properties |
BTTZ Cable | Fire protection systems, critical power circuits, high-temperature environments | Mineral insulated, fire-resistant, rigid structure |
YTTW Cable | Fire-resistant power supply systems | Flexible mineral insulated structure |
BTLY Cable | Fire-resistant cable systems in buildings | Mineral insulated, improved flexibility |
BBTRZ Cable | Fire-resistant building power circuits | Flexible fire-resistant cable design |
One of the primary uses of BTTZ cable is fire safety power supply. In many building and infrastructure projects, certain electrical circuits must remain operational for a period of time during a fire. These circuits may include fire pumps, fire elevators, emergency lighting, smoke control systems, security monitoring systems, emergency evacuation indicators, and standby power supply systems.
BTTZ cable is suitable for these applications because of its strong ability to maintain electrical continuity under high-temperature conditions. Its mineral insulated structure does not burn easily and can help support the operation of critical equipment during emergency situations.
This makes BTTZ cable widely used in high-rise buildings, airports, metro systems, hospitals, shopping centers, underground spaces, industrial facilities, and public infrastructure projects where fire safety is a major concern.
BTTZ cable is also suitable for demanding industrial environments. Because of its copper sheath and magnesium oxide insulation, it can perform in locations exposed to high temperatures, moisture, corrosion, or mechanical stress.
Common applications include nuclear power facilities, metallurgy plants, chemical plants, mines, furnaces, and other harsh industrial environments. In these locations, cables may need to withstand heat, vibration, chemical exposure, and difficult operating conditions.
The inorganic structure of BTTZ cable gives it strong resistance to aging and environmental damage. Unlike some ordinary cables that may deteriorate over time due to organic insulation aging, BTTZ cable can provide a longer service life when properly selected and installed.
BTTZ cable is widely recognized for its fire resistance, high temperature performance, mechanical strength, and long-term reliability.
Because the insulation material is magnesium oxide, the cable can withstand much higher temperatures than many conventional cable types. The copper sheath also provides strong protection and helps improve waterproof, moisture-resistant, and corrosion-resistant performance.
Another important feature of BTTZ cable is that it is non-combustible. In fire conditions, it does not easily contribute to flame spread. This makes it suitable for circuits where safety and continuous power supply are especially important.
BTTZ cable also has a relatively small outer diameter and good current carrying capacity. Its compact structure can be useful in certain engineering projects where space and performance are both important considerations.
BTTZ cable offers several important advantages in fire-resistant and critical power systems.
First, it has excellent fire-resistant performance. Since the main materials are copper and magnesium oxide, the cable itself is non-combustible and can maintain circuit integrity under high-temperature conditions.
Second, it has strong overload resistance. Under certain overload conditions, the cable can tolerate higher operating temperatures than ordinary cables, reducing the risk of insulation damage caused by heat.
Third, it has good corrosion resistance and moisture resistance. The copper sheath provides a protective barrier against water, moisture, and certain chemical substances, making the cable suitable for more demanding environments.
Fourth, BTTZ cable has a long service life. Since it is mainly made from inorganic materials, it is less affected by insulation aging compared with many traditional cable products.
Finally, its mechanical strength is relatively high, making it suitable for fixed installations that require durability and long-term stability.
Although BTTZ cable has strong performance, it also has certain limitations that should be considered during project selection.
The first limitation is cost. BTTZ cable uses a large amount of copper and mineral insulation materials, so its price is usually higher than ordinary power cables. For projects with limited budgets, the cost difference may be an important factor.
The second limitation is installation difficulty. BTTZ is a rigid mineral insulated cable, which means it is less flexible than conventional cables. It is heavier and harder to bend, so installation requires skilled workers and proper tools.
The third limitation is construction workload. For larger cable sizes, BTTZ cables are often supplied as single-core cables, which may increase the number of terminations and intermediate joints required during installation. This can make construction more time-consuming and technically demanding.
Because of these factors, BTTZ cable is usually selected for circuits with higher safety requirements rather than general-purpose power distribution where ordinary cables can already meet the project needs.
BTTZ cable installation should be carefully planned according to the project design, installation environment, and fire safety requirements. Because the cable is rigid, its route should be designed to avoid unnecessary bending and complex turns.
During installation, bending radius, terminal treatment, joint quality, and grounding requirements should be strictly controlled. Improper installation may affect the cable’s performance or increase maintenance risks.
Special attention should also be paid to terminations and intermediate joints. These parts are critical for ensuring long-term electrical safety and fire-resistant performance. For this reason, BTTZ cable installation is generally more demanding than ordinary power cable installation.
In fire protection circuits, the cable route should also be coordinated with the overall fire safety design of the building. Proper installation helps ensure that critical equipment can continue operating during emergency conditions.
BTTZ cable is widely used because it provides excellent fire resistance and reliable performance in critical power systems. Its mineral insulated structure allows it to operate in high-temperature environments, while its copper sheath provides strong mechanical and environmental protection.
For projects such as high-rise buildings, airports, metro stations, hospitals, industrial plants, and emergency power systems, BTTZ cable can provide a dependable solution for fire-resistant power supply.
However, because of its higher cost and more complex installation requirements, BTTZ cable should be selected based on actual project needs. It is most suitable for important circuits that require continuous operation, high fire resistance, and long-term reliability.
In summary, BTTZ cable is a rigid mineral insulated fire-resistant cable designed for critical power supply systems and harsh operating environments. With its copper conductor, magnesium oxide insulation, copper sheath, excellent fire resistance, and long service life, it plays an important role in modern fire safety and emergency power systems.
Choosing the right BTTZ cable requires careful consideration of fire protection requirements, voltage rating, conductor size, installation route, construction difficulty, and project safety standards. When properly selected and installed, BTTZ cable can provide stable, safe, and durable power delivery for essential electrical systems.
